A dump truck (also called a tipper truck) is a heavy-duty commercial vehicle designed to transport and unload loose materials such as sand, gravel, dirt, coal, and construction waste. The cargo body can be hydraulically tilted backward to dump its load quickly, making it indispensable for mining, construction, road building, and infrastructure projects worldwide.

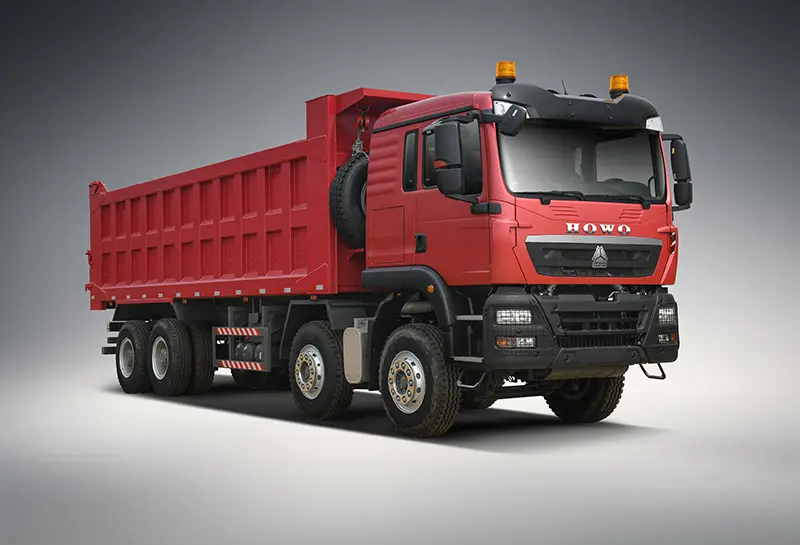

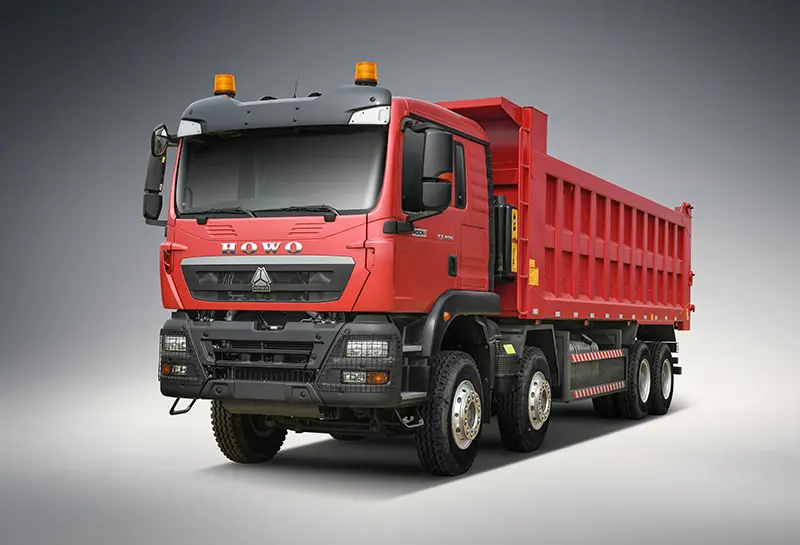

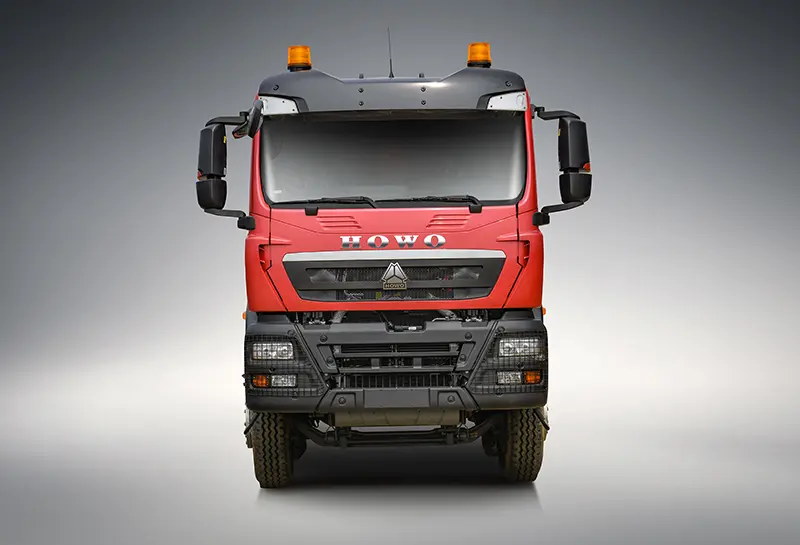

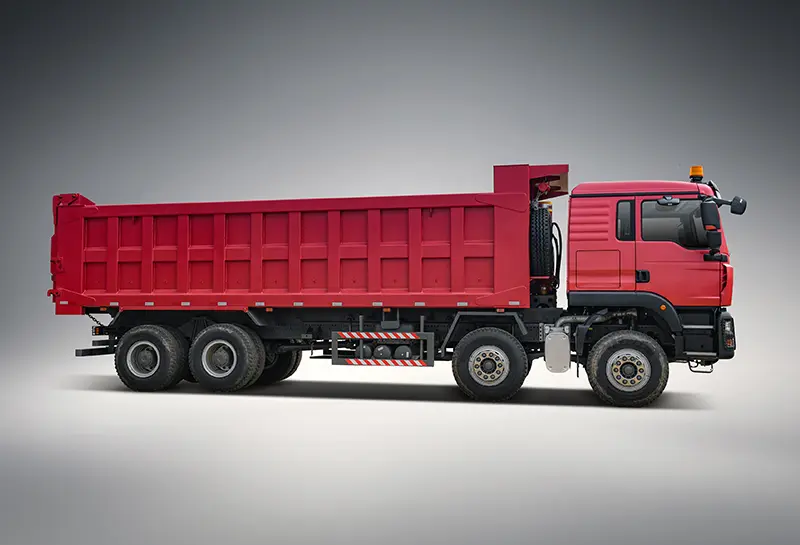

The Sinotruk Howo TX 8×4 Dump Truck has become a trusted piece of heavy-duty transportation equipment in South Africa’s construction and mining industries. This Sinotruk Howo TX 8×4 Dump Truck South Africa has earned wide recognition in the South African market for its superior performance and reliability.
The Sinotruk Howo TX 8×4 Dump Truck South Africa is especially adapted to the complex and varied terrain conditions in South Africa. Whether it is a city construction project in Cape Town or a mining operation around Johannesburg, Sinotruk Howo TX 8×4 Dump Truck South Africa is able to fulfill all kinds of heavy-duty transportation tasks stably and reliably.
Many South African contractors choose the Sinotruk Howo TX 8×4 Dump Truck South Africa primarily because of its excellent 8×4 drive configuration that provides excellent traction on South Africa’s gravel roads and rough terrain. The rugged body construction of this Sinotruk Howo TX 8×4 Dump Truck South Africa is also able to cope well with the harsh South African working environment.
From the service support point of view, Sinotruk Howo TX 8×4 Dump Truck South Africa has a well-established local after-sales service network. Users in South Africa can conveniently get Sinotruk Howo TX 8×4 Dump Truck South Africa’s maintenance service and original spare parts supply, which greatly reduces the operating cost of the equipment.

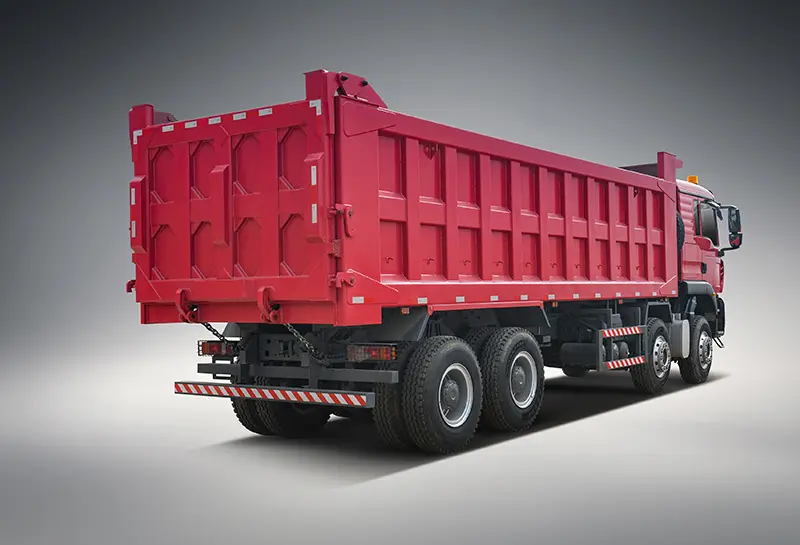

The Sinotruk Howo TX 8x4 Dump Truck is equipped with an advanced hydraulic tipping system that makes cargo unloading fast, efficient, and effortless. The 7300X2300X1700mm cargo box with 28.54 cubic meters capacity ensures maximum loading capacity and thorough unloading, significantly improving operational efficiency on busy construction and mining sites.
| SINOTRUK HOWO TX 8X4 DUMP TRUCK SPECIFICATION | |
|---|---|
| Production Year | 2025, new truck. |
| Cabin | TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R, with HW50 PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2*16000KG Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Front suspension: 11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 11leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake - Service | Dual circuit compressed air brake |
| Brake - Parking | Spring energy, compressed air operating on front shaft and rear wheels |
| Brake - Auxiliary | Engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires. 12+1 Pics |
| Cargo Body | 7300X2300X1700mm, 28.54Cubic Meters Thickness: Floor 8 mm, Side 6 mm Front Lifting System |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |
Featuring an adjustable air suspension seat, the Sinotruk Howo TX 8x4 Dump Truck offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives. The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey.

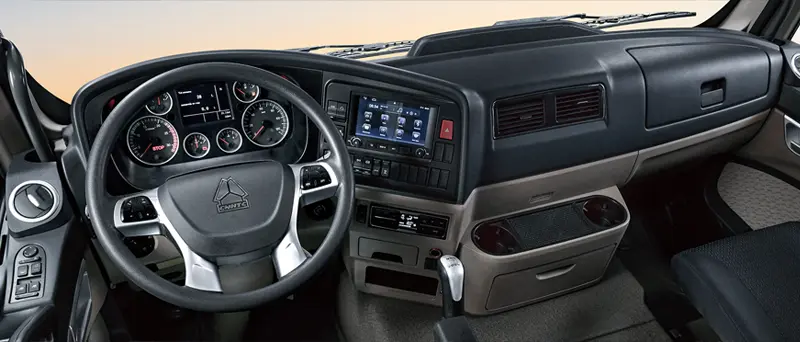

Sinotruk Howo TX 8x4 Dump Truck: All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.

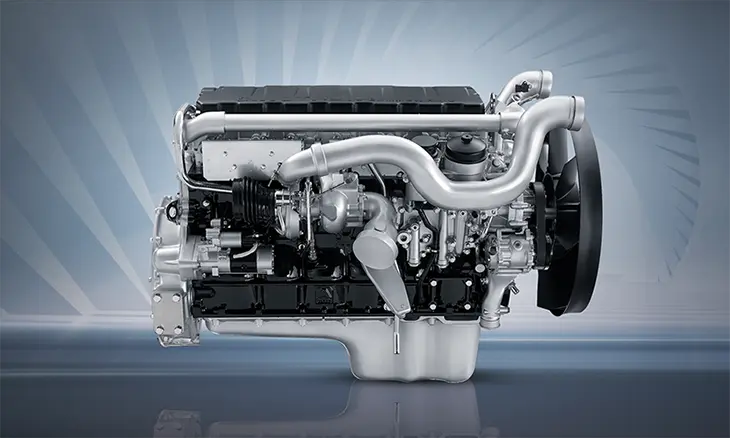

Sinotruk Howo TX 8x4 Dump Truck: Experience more power with less fuel. Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

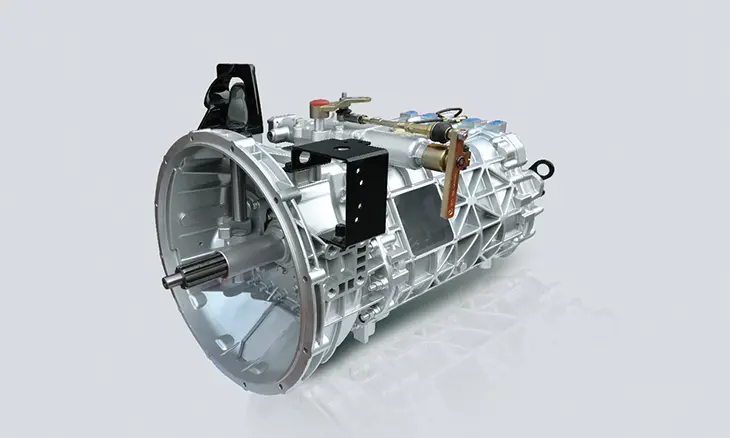

Sinotruk Howo TX 8x4 Dump Truck: The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

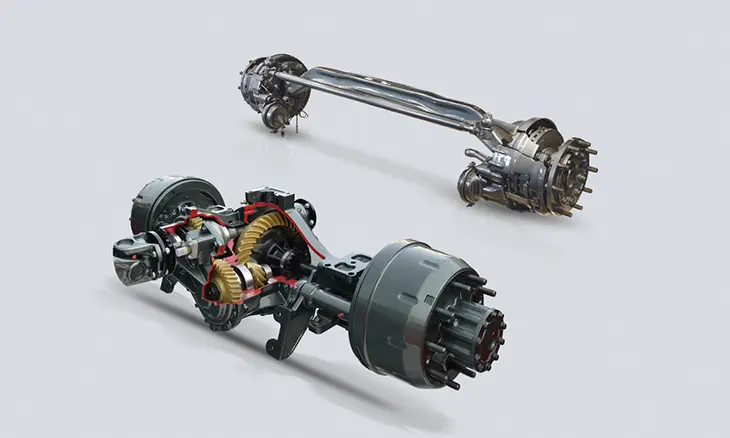

Sinotruk Howo TX 8x4 Dump Truck: The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.
