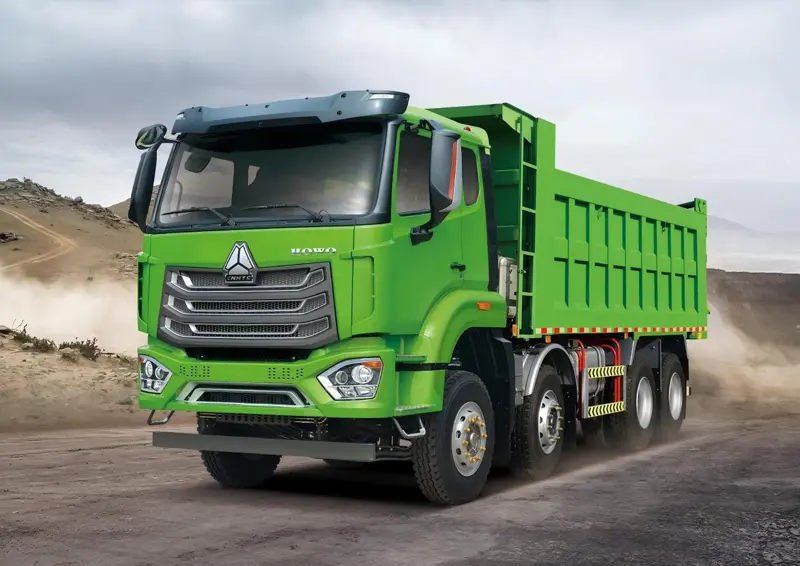

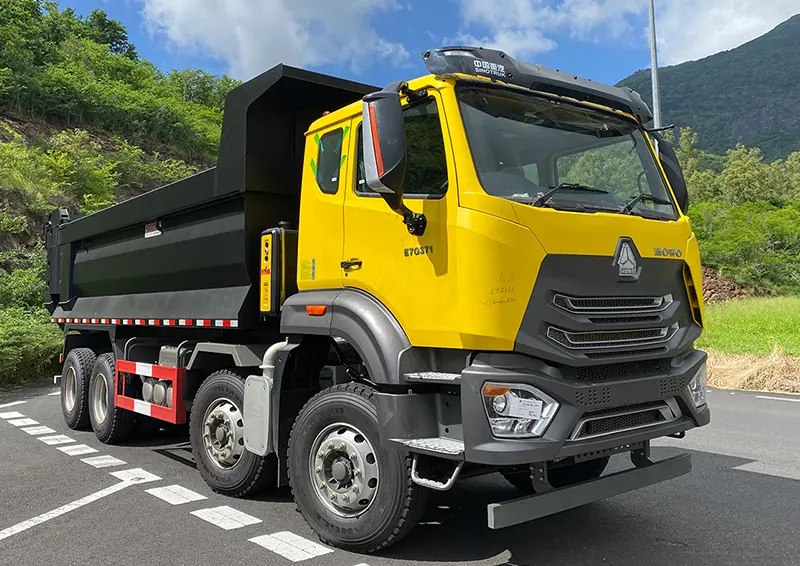

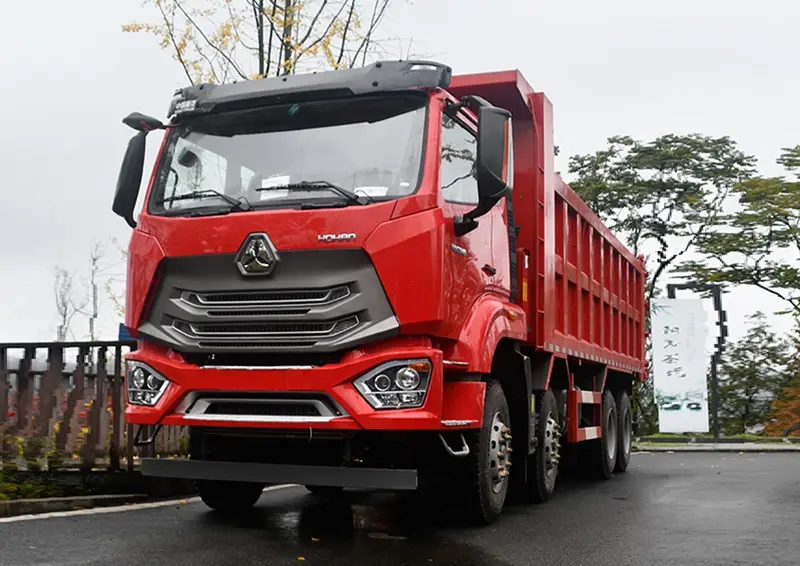

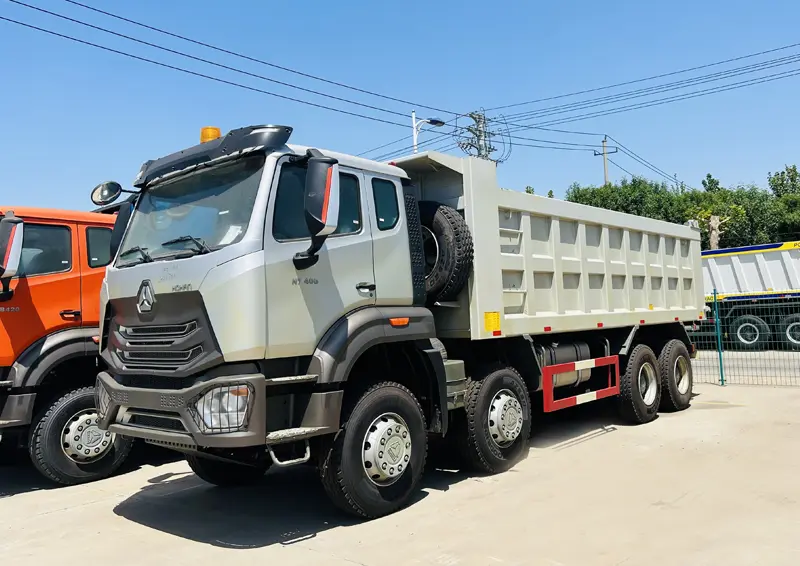

The Sinotruk Howo NX 8x4 Dump Truck is a high-performance heavy-duty truck widely used in construction and mining transportation. Equipped with a 380 hp diesel engine, it has excellent hill climbing ability and stability.With a cargo box size of 5400x2300x1500 mm, the Sinotruk Howo NX 8x4 Dump Truck is capable of carrying a large amount of materials to meet different customer needs.
Its advanced hydraulic system and powerful power transmission system make the operation easier and suitable for all kinds of complex working conditions.Sinotruk Howo NX 8x4 Dump Truck is your ideal transportation partner.
Sinotruk Howo NX 8x4 Dump Truck is built to withstand the rigors of heavy-duty use. Its rugged chassis, reinforced axles, and heavy-duty suspension system provide exceptional stability and durability, even on the most challenging terrains.
Sinotruk Howo NX 8x4 Dump Truck heavy-duty workhorse is engineered to tackle the toughest jobs, delivering exceptional performance and durability in even the most demanding conditions.At the heart of the Sinotruk Howo NX 8x4 Dump Truck lies a robust 380HP engine, providing the raw power needed to haul massive loads with ease.

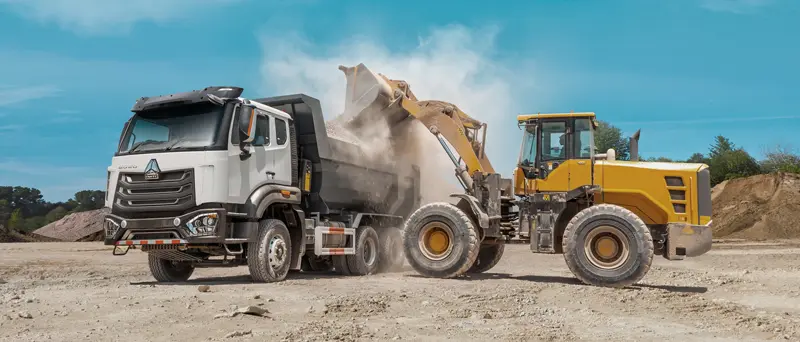

The Sinotruk Howo NX 8x4 Dump Truck features an advanced hydraulic tipping system that makes cargo unloading fast, efficient, and effortless. The optimized cargo box design ensures maximum loading capacity and thorough unloading, significantly improving operational efficiency on busy construction and mining sites.
The Sinotruk Howo NX 8x4 Dump Truck is equipped with an advanced hydraulic tipping system that makes cargo unloading fast, efficient, and effortless. The optimized cargo box design ensures maximum loading capacity and thorough unloading, significantly improving operational efficiency on busy construction and mining sites.
| SINOTRUK HOWO NX 8X4 DUMP TRUCK | |
|---|---|
| Production Year | 2025, new truck. |
| Cabin | H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine. Engine model: WD615.47, 371HP. 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R, with HW50 PTO. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS. Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2*16000KG. Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Front suspension: 11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer. Rear suspension: 11 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake. Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels. Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded. Starter: 24 V, 5.4 Kw. Alternator: 3-phase, 28 V, 1500 W. Batteries: 2 x 12 V, 165 Ah. Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires. 12+1 Pics |
| Cargo Body | 7300X2300X1700mm, 28.54 Cubic Meters. Thickness: Floor 8 mm, Side 6 mm. Front Lifting System |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |
HOWO-NX with high price-quality ratio. The super high price-performance ratio of the HOWO NX series will provide you with comfort, reliability and benefits that far exceed your expectations.

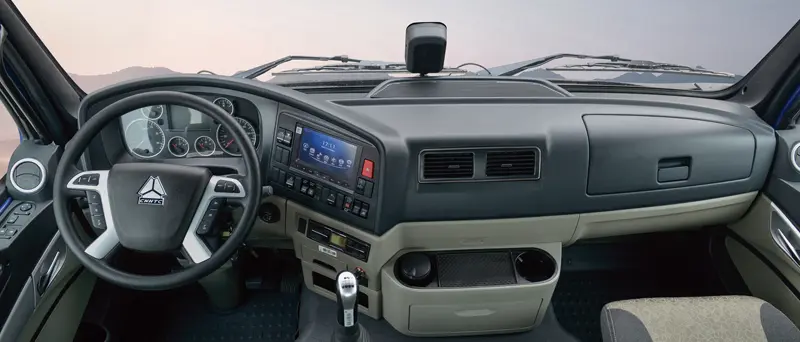

The HOWO-NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.
The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.
The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.
