The Sinotruk Howo 7 8x4 Dump Truck is a high-performance heavy-duty truck widely used in the construction and mining sectors. Equipped with a powerful engine with up to 400 hp, the Sinotruk Howo 7 8x4 Dump Truck offers excellent fuel efficiency and a load capacity of up to 50 tons.
With a sturdy body, efficient gearbox, and durable suspension system, Sinotruk Howo 7 8x4 Dump Truck ensures high-performance operation in challenging environments. Compliant with Euro II emission standards, it is an ideal choice for construction sites and mining transport.

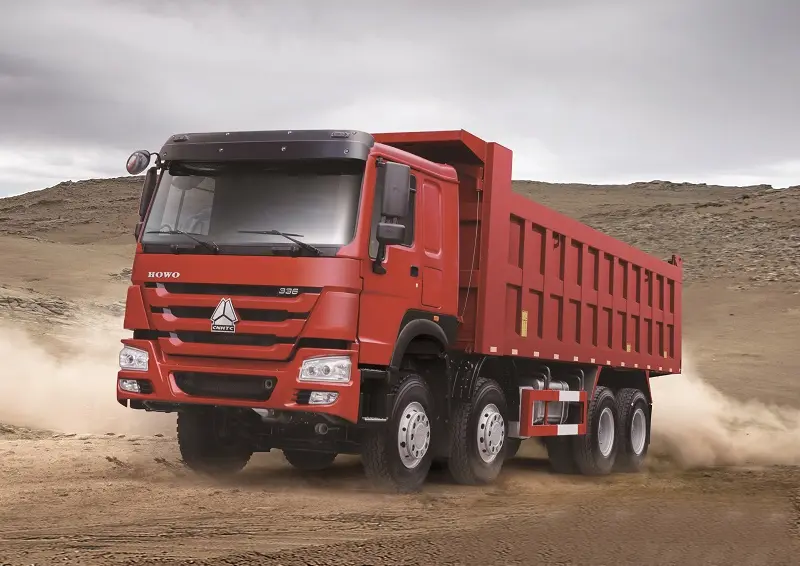

At the heart of the Sinotruk Howo TX 371 lies the legendary WD615.47 diesel engine, producing a maximum output of 371 horsepower at 2200 rpm. This proven powerplant features a 6-cylinder in-line configuration with turbo-charging and intercooling, displacing 9.726 liters. The advanced BOSCH high-pressure common rail fuel injection system generates up to 1600 bar of injection pressure, ensuring superior fuel atomization, stronger pulling power, and reduced fuel consumption across all operating conditions.
The HW19710 transmission offers 10 forward gears and 2 reverse gears. The dual countershaft main transmission combined with planetary gear auxiliary transmission delivers smooth, reliable gear shifts and excellent adaptability to varying road and load conditions.
The Sinotruk Howo TX 371 sits on a robust 8x4 drive configuration. The front axle (VGD95) handles up to 9,500 kg while the heavy-duty rear tandem axles (MCP16ZG) support up to 16,000 kg each, providing outstanding load-carrying capacity. Central single reduction with hub reduction and differential locks ensures maximum traction on rough terrain. Standard 12.00R20 radial steel wire tires (10 + 1 spare) and a 300L fuel tank support long-distance material transport operations.
The robust cargo body measures 5400 x 2300 x 1450 mm, offering an impressive 18 cubic meters of loading volume ideal for moving large quantities of sand, gravel, earth, and ore in a single trip. The advanced hydraulic tipping system enables fast, complete unloading, dramatically improving job site efficiency.
The TX-F driver cab features a one-sleeper, two-seat layout with a damped adjustable driver's seat, heating and ventilating system, 3-point safety belts, adjustable steering wheel, air horn, and air conditioning. The 4-point support fully floating suspension isolates road vibrations, keeping drivers comfortable during long shifts in demanding environments.
Global fleet operators consistently choose the Sinotruk Howo TX 371 for its combination of power, reliability, and low cost of ownership. With an extensive worldwide dealer and service network, genuine spare parts are always within reach. The proven WD615 engine platform has accumulated millions of operating hours across Africa, Southeast Asia, the Middle East, and South America.
As the flagship model of Sinotruk, Sinotruk Howo 7 8x4 Dump Truck, with the golden power combination of 420 HP Weichai engine and HW19710CL transmission, undertakes daily average 80 carloads of ore transportation in open-pit coal mines.
| SINOTRUK HOWO 7 8X4 DUMP TRUCK | |
|---|---|
| Production Year | 2025, new truck |
| Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine. Engine model: WD615.47, 371HP, 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R, with HW50 PTO. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Front Axle | VGD95, 9500 KGS, Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2 x 16000KG, pressed axle housing, central single reduction with hub reduction and differential locks |
| Brake | Service brake: dual circuit compressed air brake. Parking brake: spring energy, compressed air. Auxiliary brake: engine exhaust brake |
| Fuel Tank | 300L |
| Tires | 12.00R20, Radial (steel wire) Tires, 12 + 1 Pcs |
| Cargo Body | 7300X2300X1700mm, 28.54 Cubic Meters, Floor 8mm, Side 6mm, Front Lifting System |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |

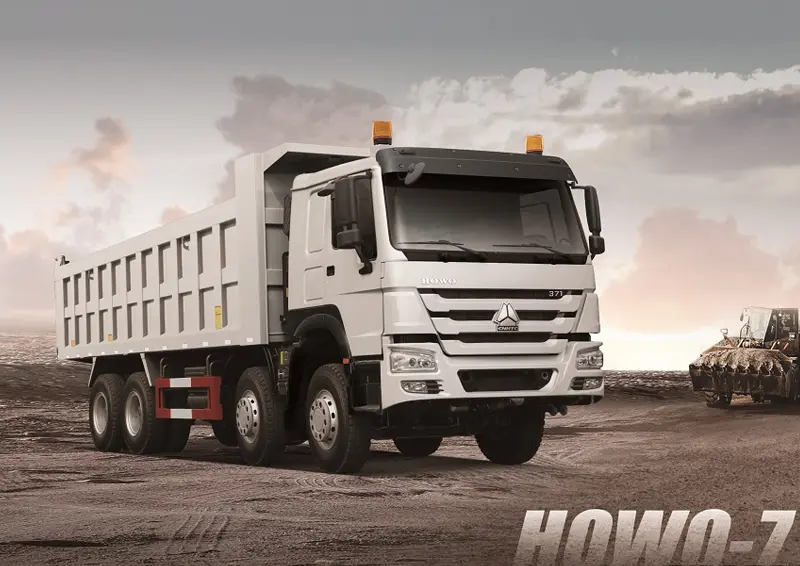

HOWO-7: Fully Equipped to Face the Toughest Working Conditions. The HOWO-7 truck excels in challenging environments like construction sites and mines, thanks to its strength, ruggedness, and durability.
The HOWO 7 series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics.
