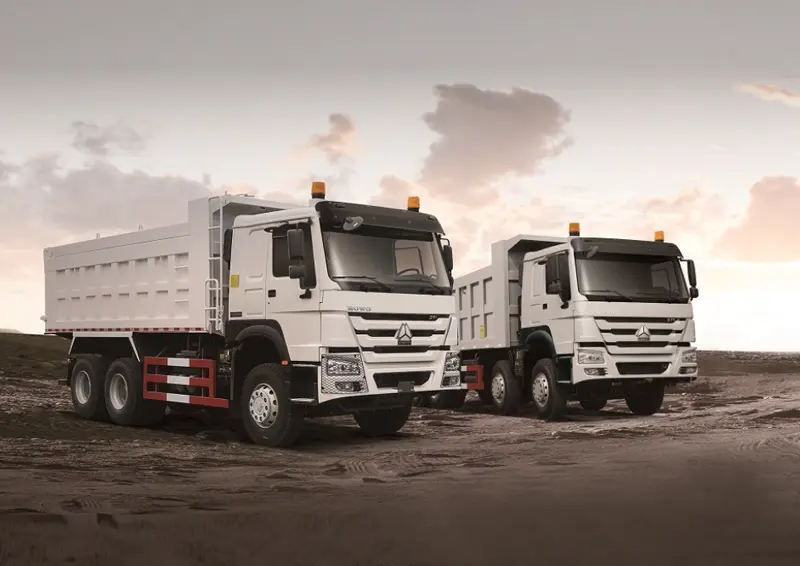

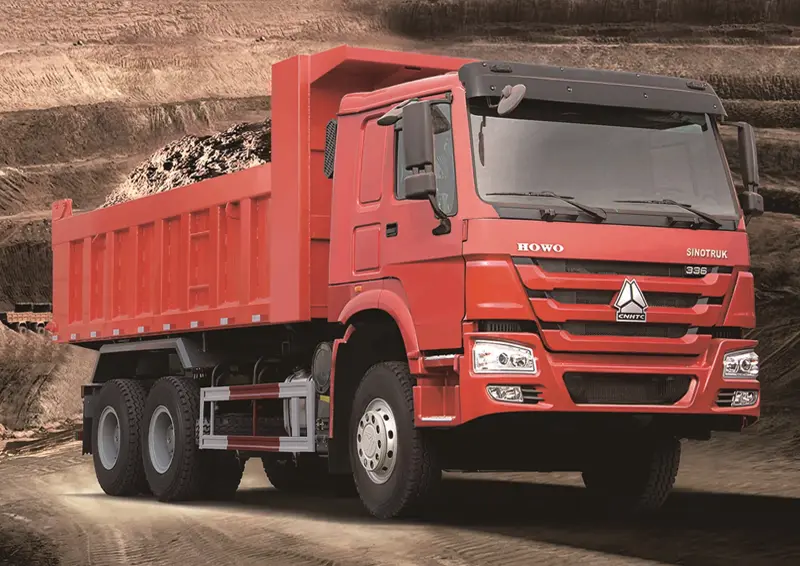

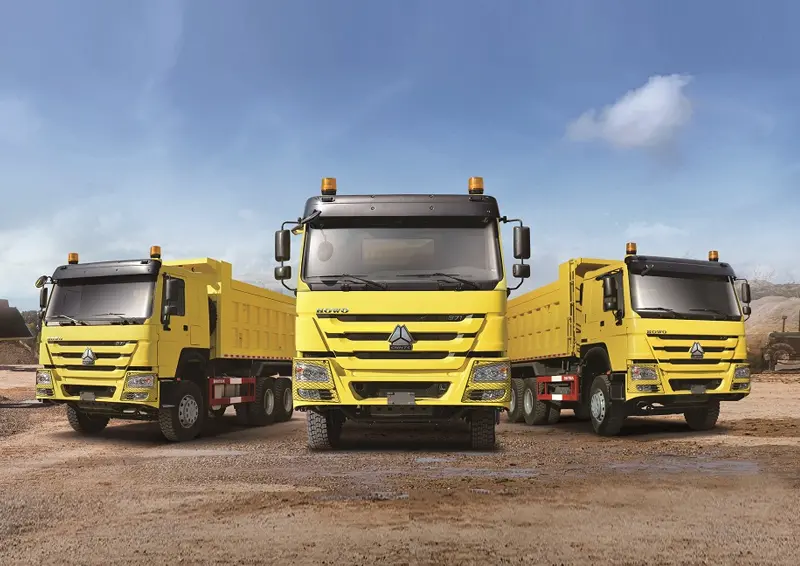

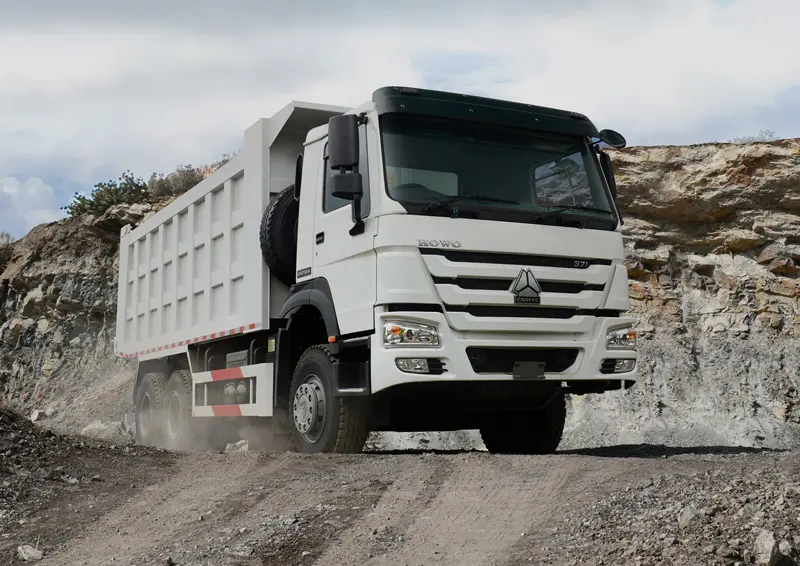

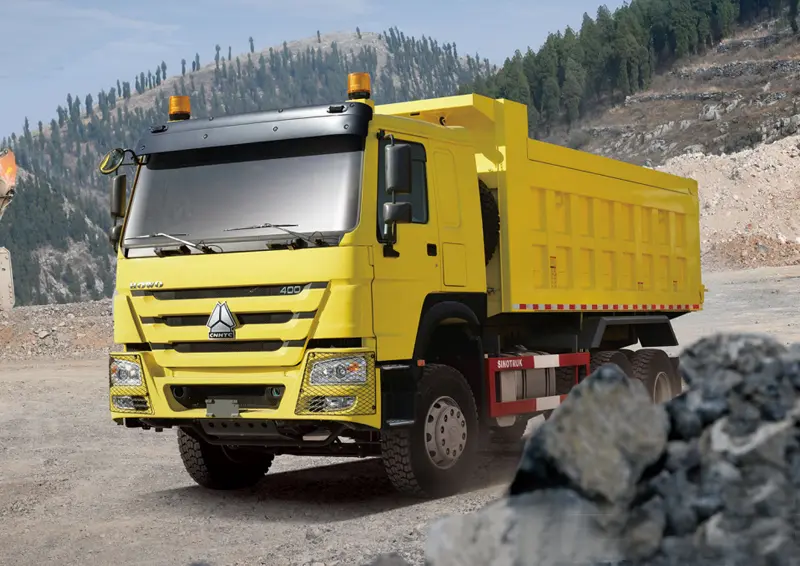

The Sinotruk Howo 7 6x4 Dump Truck offers two drive configurations: 8x4 and 6x4, equipped with powerful engines ranging from 290 to 420 horsepower. The Sinotruk Howo 7 6x4 Dump Truck model is ideal for large-scale projects and heavy-duty transport, with a load capacity of up to 35 tons, while the 6x4 model is more flexible, suited for medium-load transport with a capacity of up to 25 tons.
With a sturdy body, efficient gearbox, and durable suspension system, Sinotruk Howo 7 6x4 Dump Truck ensures high-performance operation in challenging environments. Compliant with Euro II emission standards, it is an ideal choice for construction sites and mining transport.
The Sinotruk Howo 7 6x4 Dump Truck plays a crucial role various industries. In the construction sector, Sinotruk Howo 7 6x4 Dump Truck efficiently transports large volumes of construction materials like sand, gravel, and cement to building sites across the country. The Sinotruk Howo 7 6x4 Dump Truck robust design allows it to handle the often challenging and rugged terrains in Congo, from the bumpy roads in urban areas to the more difficult off-road conditions in rural regions.
| SINOTRUK HOWO 7 6X4 DUMP TRUCK | |
|---|---|
| Production Year | 2025, new truck |
| Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine. Engine model: WP12S400E201/WP12.400E201, 400HP, 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R, with HW50 PTO. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS. Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2 x 16000KG. Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles |
| Chassis | Front suspension: 11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer. Rear suspension: 11 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake. Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels. Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24V, negative grounded. Starter: 24V, 5.4Kw. Alternator: 3-phase, 28V, 1500W. Batteries: 2 x 12V, 165Ah. Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tires | 12.00R20, Radial (steel wire) Tires, 12 + 1 Pcs |
| Cargo Body | 7300X2300X1700mm, 28.54 Cubic Meters. Thickness: Floor 8mm, Side 6mm. Front Lifting System |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |

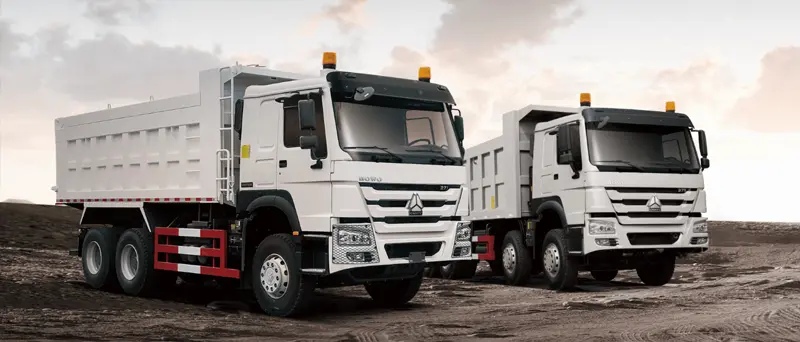

HOWO-7: Fully Equipped to Face the Toughest Working Conditions. The HOWO-7 truck excels in challenging environments like construction sites and mines, thanks to its strength, ruggedness, and durability. In harsh working environments, HOWO-7 is fully equipped to face the toughest working conditions.

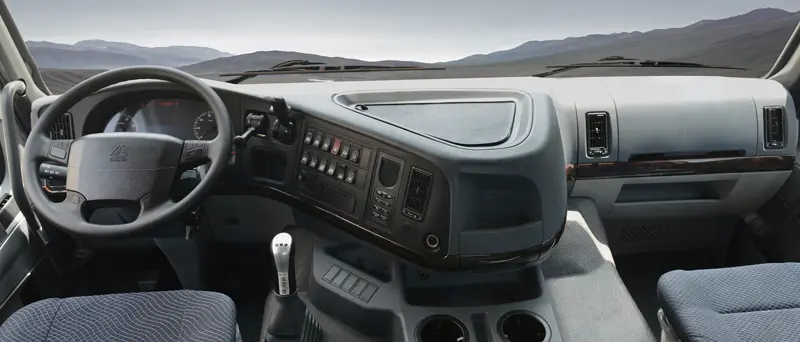

The HOWO 7 series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.
