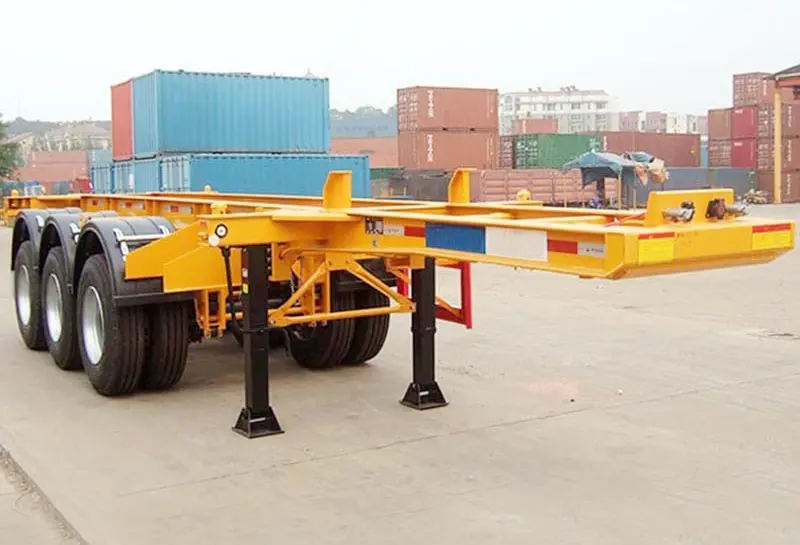

Sinotruk Howo Container Chassis Trailer

Sinotruk Container Chassis Trailer

Sinotruk Howo Container Chassis Trailer

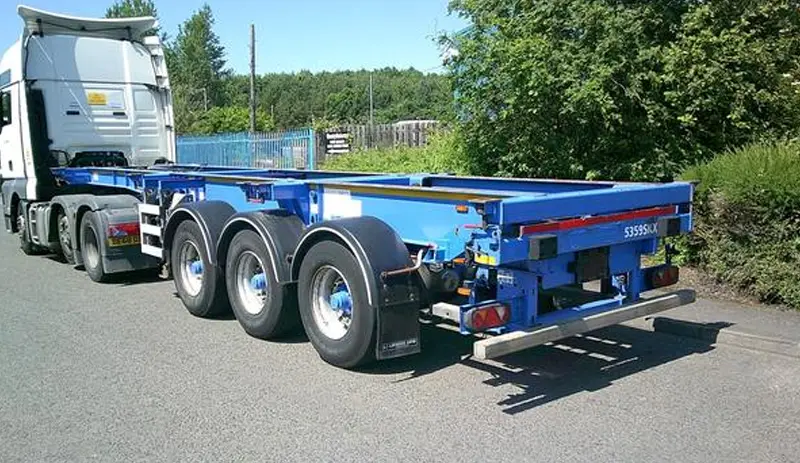

Axle
3 axles BPW/FUWA 13T
Max Load
40,000 kg
Dimension
13,950 x 2,500 x 1,550 mm
Twist-Lock
12/14 sets ISO Standard
Suspension
Mechanical / Air / Bogie
Loading
20ft & 40ft Containers

Product Introduction

Sinotruk Howo Container Chassis Trailer main beams are made of super-strong steel casting, which increases the strength by 2 times, and eliminates the side panels for a lighter body. Vehicle warranty of 2 years, 12 performance tests of the whole vehicle and key components to ensure driving safety.

A major change in the Sinotruk Howo Container Chassis Trailer is the different way the trailer legs are mounted. Instead of attaching the trailer outriggers directly to the beams, a tripod is placed underneath the beams so that the outriggers have a greater point of attachment to the force. As a result, the trailer will be more stable when parked alone and its service life will be further improved.

In terms of light weight, Sinotruk Howo Container Chassis Trailer adopts aluminum alloy fence, aluminum alloy tool box and aluminum alloy fenders to reduce the weight and chooses the antilock braking system, which greatly improves the service life of tires.

Lower loading surface: Sinotruk Howo Container Chassis Trailer frame adopts special small gooseneck structure, which greatly reduces the height of the loading surface and the center of gravity of the cargo, facilitates the transportation and improves the driving safety of the vehicle.

Multipurpose

20ft & 40ft ISO Containers

40T Capacity

Heavy-duty load performance

Global Standard

ISO Twist-Lock System

Customizable

Flexible axle & suspension options

Technical Excellence

Container Chassis Technical Features

Heavy-Duty Main Beam

"I" Section 500mm height, Q345/T700 high-strength steel. Super-strong steel casting increases strength by 2 times with lighter body weight.

ISO Twist-Lock System

12 or 14 sets of ISO standard twist-locks. Compatible with all standard 20ft and 40ft containers. Quick and secure container locking.

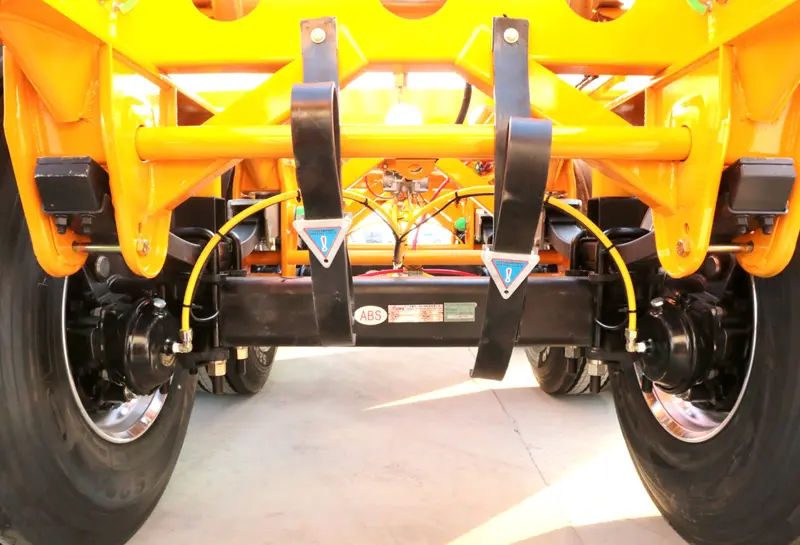

Reliable Brake System

WABCO brake valve, T30/30 brake chambers, 28L air tank, nylon wire brake pipes. ABS/EBS optional for enhanced safety.

Lightweight Design

Aluminum alloy fence, tool box and fenders reduce dead weight. Special small gooseneck structure lowers loading surface and cargo center of gravity.

Technical Parameters

Technical Specifications
Semi TrailerSinotruk Howo Container Chassis Trailer
Dimension13950*2500*1550mm
Height1550mm
Width2500mm
Skeletal trailer weight6500Kg
Main Beam"I" Section 500mm height Q345/T700 material
Twist-Lock12/14 set ISO Standard
SuspensionMechanical / Air / Bogie
Axle3 axles BPW/FUWA/PDME etc
Rim8/12/16 pieces 9.0-22.5 Steel/Aluminum
Tire8/12/16 pieces 12R22.5 Bridgestone/Triangle/Linglong etc
Brake ValveWABCO
Brake Chamber4/6 sets T30/30
Air Tank28L
Brake PipeNylon Wire Pipe
Landing Gear28T Lifting JOST/YAHUA
Kingpin2"(50mm)/3.5"(90mm) JOST Bolting Type
Lights12v/24v LED Waterproof
ColorCustomized

Product Applications

Container Chassis Trailer
Standard 20ft Container

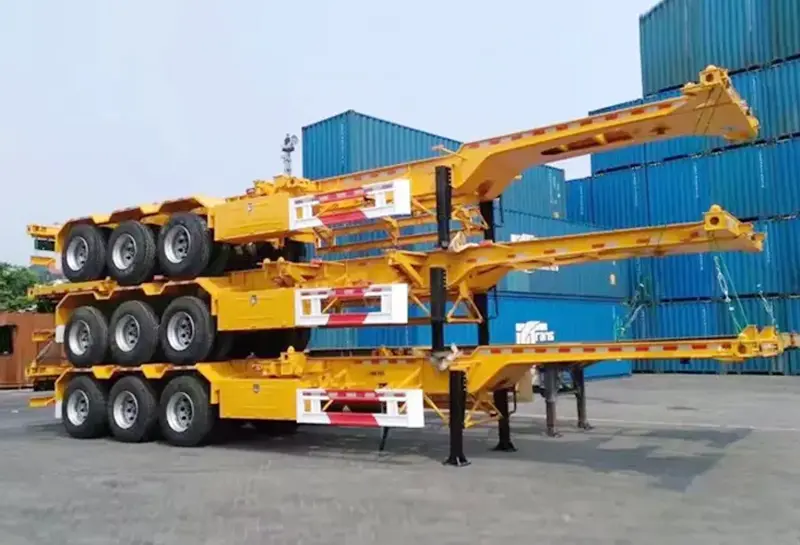

Container Chassis Front View
40ft High Cube Container

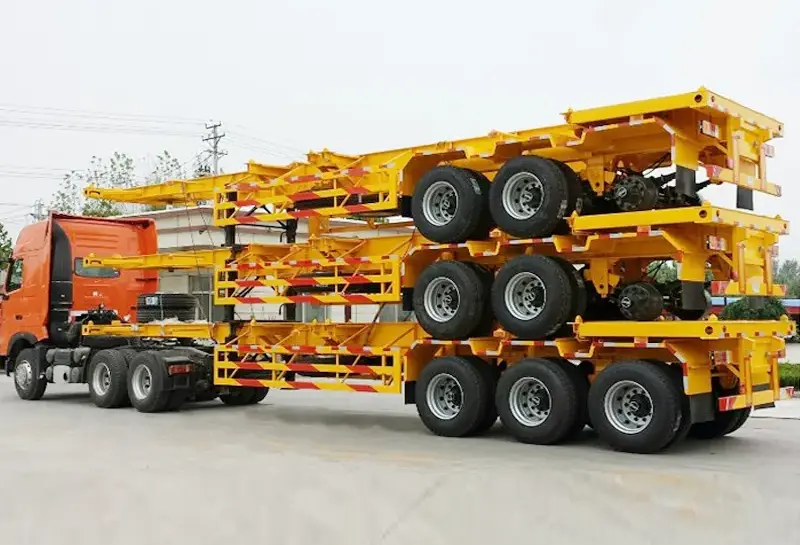

Container Chassis Rear View
Multimodal Transport
