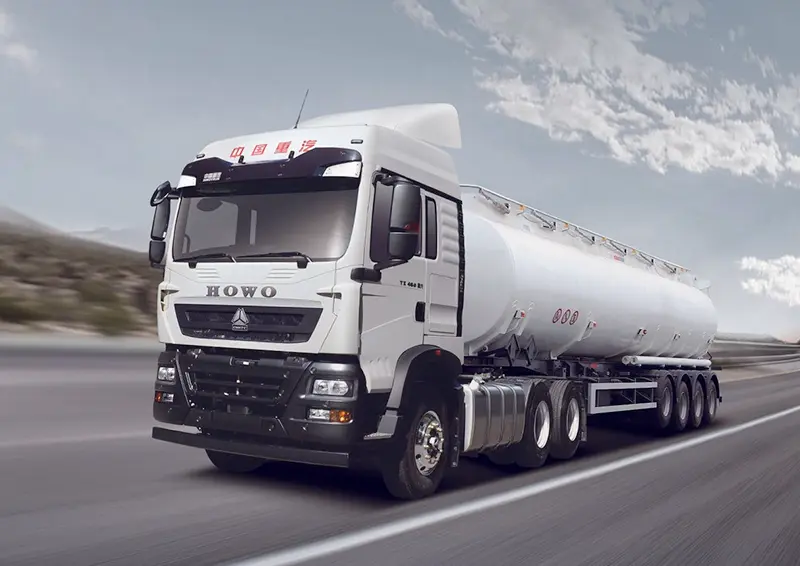

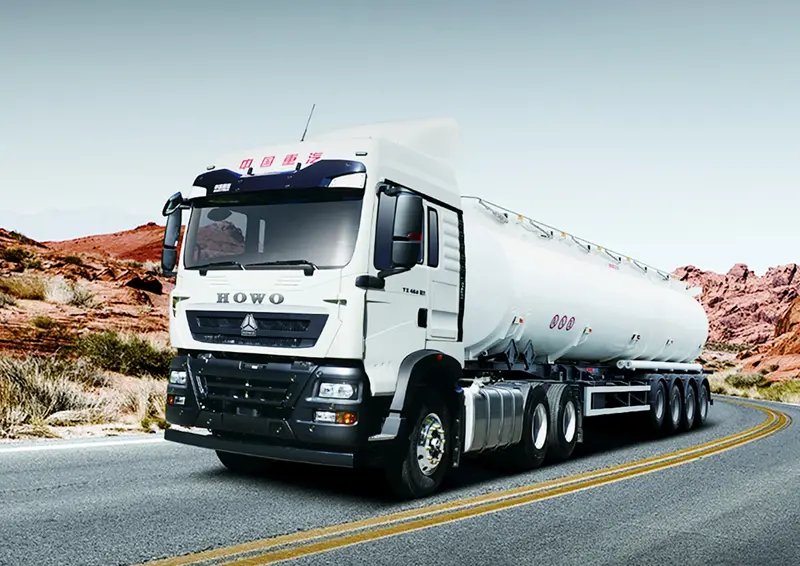

The Sinotruk Howo TX 6x4 tanker truck is a high-performance heavy-duty truck designed for oil transportation. With a 6x4 drive layout, it offers the power and stability to drive safely in all kinds of complex road conditions.The Sinotruk Howo TX tanker truck has a fuel tank capacity of typically more than 20,000 liters, which is suitable for long-distance transportation and large-scale oil distribution.
Equipped with a state-of-the-art pumping system, the Sinotruk Howo TX 6x4 tanker truck is able to carry out refueling and unloading operations quickly and efficiently, which greatly improves work efficiency. In addition, the Sinotruk Howo TX 6x4 tanker truck's body design is carefully optimized for durability and corrosion resistance, ensuring excellent performance over long periods of use.
Safety is one of the highlights of Sinotruk Howo TX tanker trucks. The Sinotruk Howo TX 6x4 tanker truck is equipped with multiple safety protection systems to ensure the safety and stability of the oil during transportation. Whether it's at a gas station in the city or in a remote oil field, the Sinotruk Howo TX 6x4 tanker truck excels and is ideal for all types of oil transportation. Its reliable performance and economical operating costs make it the first choice for many logistics companies.
| SINOTRUK HOWO TX 6x4 FUEL TANKER TRUCK SPECIFICATION | |
|---|---|
| Truck Name | Sinotruk Howo TX 6x4 tanker truck |
| Form of Drive | 6X4 |
| Wheelbase | 4575+1400mm |
| Body Dimensions | 9.84m |
| Front/Rear Overhang | 2.5m |
| Rated Load | 3.28tons |
| Overall Vehicle Weight | 12.2tons |
| Top Speed | 80km/h |
| Tank Size | 6500x2490x1650mm |
| Tank Volume | 19.5m³ |
| Front Wheelbase | 2035mm |
| Rear Wheelbase | 1850/1850mm |
| Total Quality | 26tons |
| Engine Parameters | |
| Engine Model | Sinotruk MC09.35-60 |
| Number of Cylinders | 5-cylinder |
| Maximum Output | 257kW |
| Maximum Horsepower | 350hp |
| Displacement | 8.765L |
| Emission Standard | National Six |
| Engine Form | Common Rail+EGR+DOC+DPF+SCR |
| Fuel Type | Diesel |
| Rated Speed | 1900rpm |
| Engine Brand | Sinotruk |
Cloud management system supports remote OTA upgrade and fuel consumption analysis, with an abnormal working condition warning accuracy rate of >95%, reducing unplanned downtime.
The three-axle drive layout with inter-wheel differential lock improves the traction efficiency by 40% on muddy roads, which is especially adapted to unpaved roads such as mining areas and construction sites.
Adopts a double-layer high-strength steel frame (yield strength >= 700MPa) with 8+10 leaf spring suspension, allowing a maximum GCW (gross combination weight) of 49 tons.
Matches 16-speed AMT transmission with Hill Assist and Predictive Shift function, with shift response time <0.8 seconds, improving adaptability to complex road conditions.
Equipped with MC series high-pressure common rail engine, the maximum torque reaches 2500N-m (@1000-1400rpm), the low-speed and high-torque feature significantly reduces the fuel consumption in mountainous areas.
