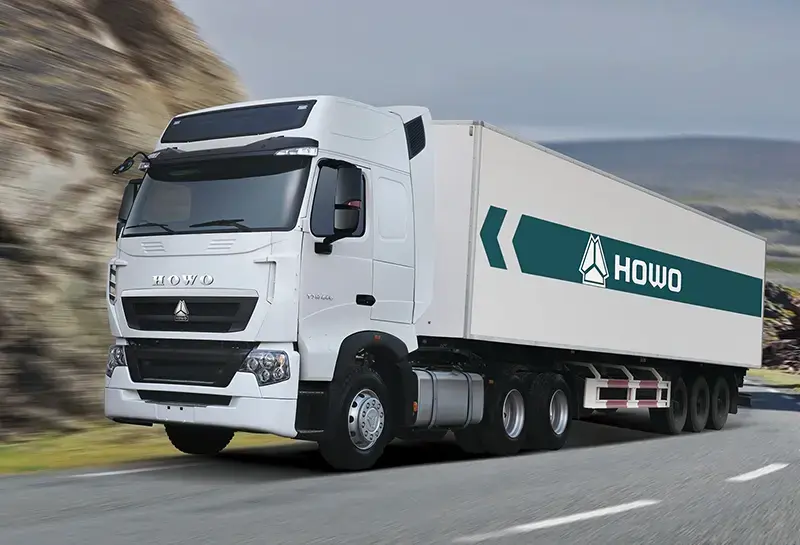

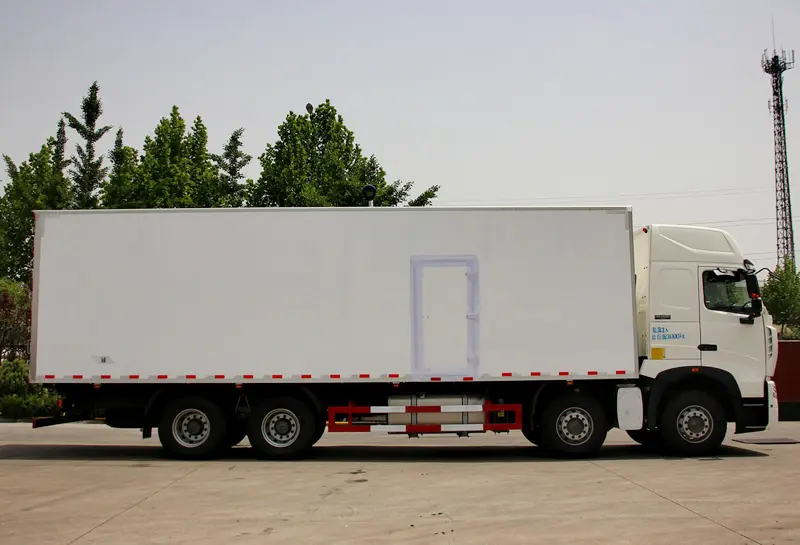

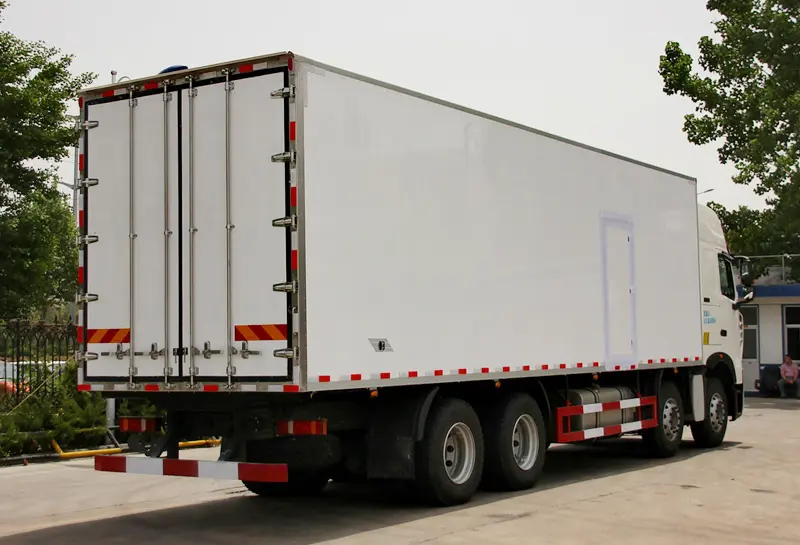

Sinotruk Howo T7h 540 Cargo Truck delivers exceptional performance with its fuel efficiency, comfortable cab, spacious storage, increased speed, and higher payload capacity ?all seamlessly integrated to meet your every need.
Comfort in the workplace is a critical requirement for stress-free operation of the vehicle. Sinotruk Howo T7h 540 Cargo Truck cabin fulfills this promise with its ergonomic design and equipment and details that are perfectly matched to the tasks involved in transport, offering you a level of comfort reminiscent of home while on the move.
Four-point suspension, front transverse stabilizer bar, front and rear air shock absorbers, and rear transverse shock absorbers provide superior shock absorption and enhanced comfort.

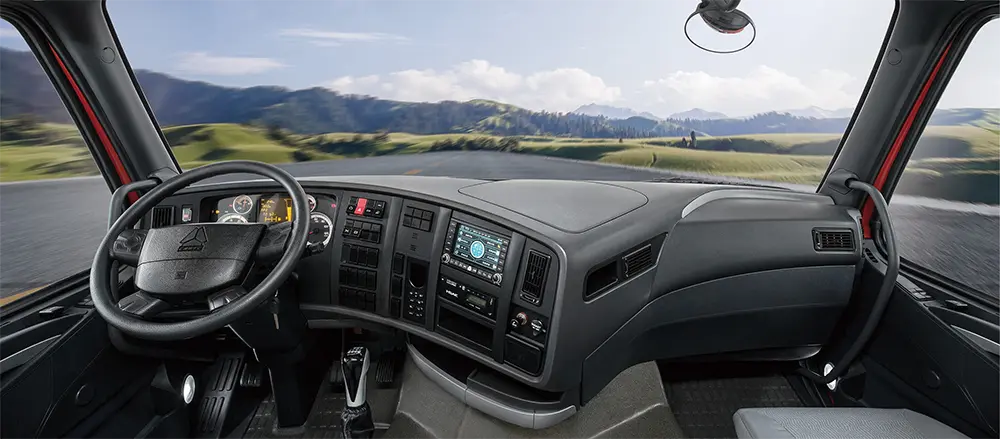

The dashboard features an integrated, wraparound design, with all buttons conveniently located and within easy reach. The multifunction steering wheel allows the driver to easily control various functions; Height and angle can be adjusted in all directions to meet the needs of drivers of different heights.
| SINOTRUK HOWO T7H 540 CARGO TRUCK SPECIFICATION | |
|---|---|
| Production Year | New Truck |
| Model | ZZ4257N344HB1 |
| Overall Dimension | 6900x2550x3400mm |
| Dimension(m) | 11.265x2.55x3.98 |
| Drive Type | 6x4 |
| Rated Load | 19.07 tons |
| Fuel Tank | 400L |
| Horsepower | 371/380/400/430/540HP |
| Cabin | |
| Cabin Type | T7HSP/T7HG cab, with one sleeper and two seats |
| Air Conditioner | Included |
| Seat | Damped adjustable driver's seat with heating and ventilating |
| Steering | Adjustable steering wheel, air horn, transverse stabilizer |
| Engine Parameters | |
| Engine Model | WD615.47, 371HP / WP10.380E22, 380HP / WP12S.400E201, 400HP |
| Engine Type | Diesel 4-stroke direct injection, 6-cylinder in-line, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R |
| Front Axle | VGD95, 1x9500 KGS |
| Rear Axle | MCP16ZG, 2x16000KGS |
| Tire | 12.00R20 or 315/80R22.5 |
| Fifth Wheel | 90# or 50# |

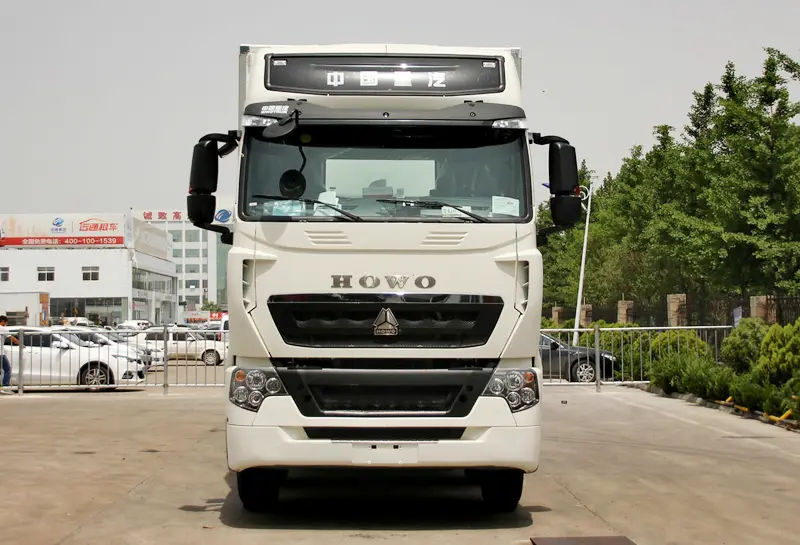

Italian design style, with bold lines emphasizing a modern, dynamic, and minimalist design concept. The overall shape is unique, with a low drag coefficient. Newly designed rearview mirrors feature electric adjustment and heating; Three-stage, non-slip steps made of stainless steel provide safer and more convenient access.

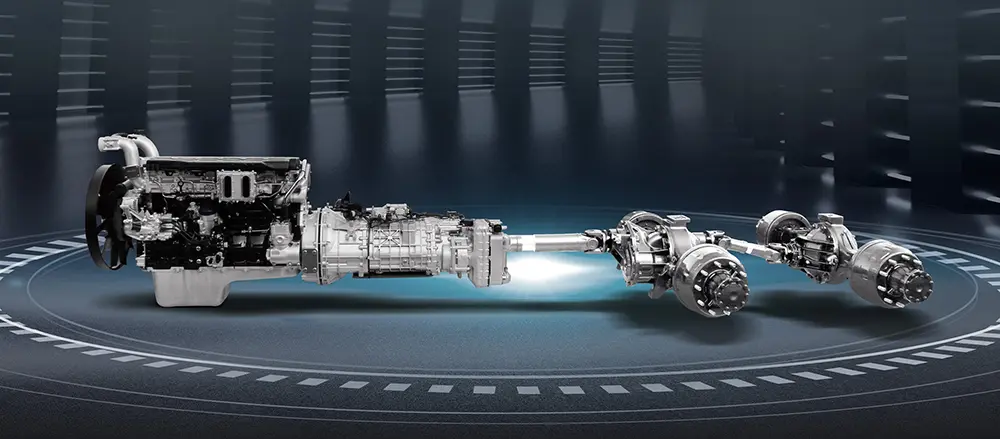

The entire powertrain has undergone rigorous theoretical verification and various complex on-site verifications. Each assembly in the powertrain fully exerts its superior performance, truly realizing the rational matching and optimal utilization of each component.

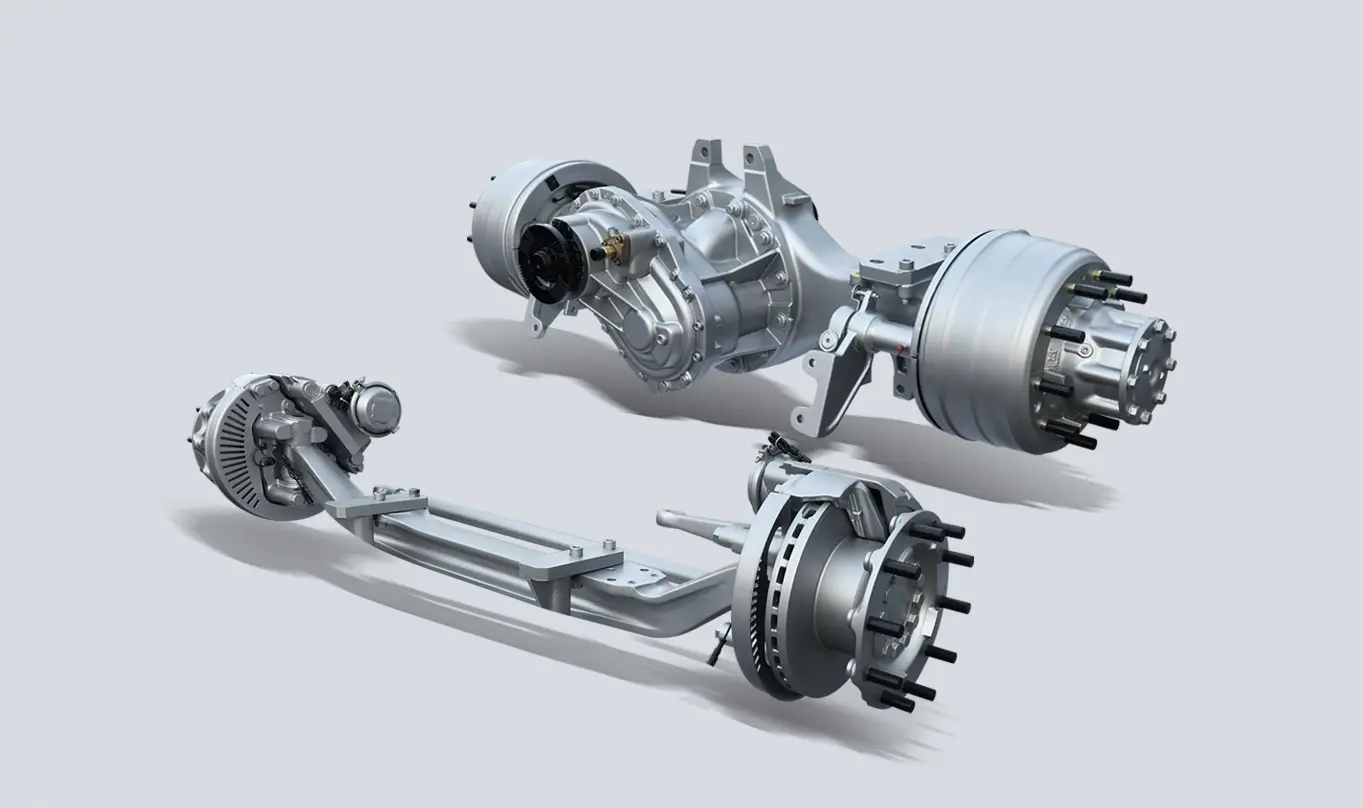

The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life.
Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine's operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization.
The HW series transmissions incorporate a globally leading design concept, utilizing a twin-countershaft configuration for the main transmission and a planetary gear set for the auxiliary transmission.
