The highly cost-effective Sinotruk Howo MAX Cargo Truck offers you exceptional comfort, reliability, and economic benefits. Meticulous design not only enhances the driving experience but also optimizes operating costs, making it the ideal choice for efficient transportation.
The bow grille and radiator grille are designed wider than the old version, with 3 chrome-plated zinc strips shaped like stretched bows and arrows for a sophisticated look. The lower grille is inspired by the Great Wall of China, symbolizing stability and longevity.
Advanced headlights with sharp and prominent edges, inspired by ancient sharp weapons, and advanced lighting technology to create a unique identity. From the front to the back of the cabin, both sides are equipped with sharp lines to create a soft feel.
The Sinotruk Howo MAX features the MAX-E cab model, the newest and most modern cab model. The exterior, interior and parameters are completely different from those of older cab models such as the A7, T7H and V7G.
MC11.40-50 Engine (MAN GERMANY): 10,518 cm3 displacement, 400HP/3200 rpm, Maximum torque 1,900 Nm. 10x4 wheel formula with 5 axles for excellent load capacity.
12.3-inch floating central control screen integrates WiFi, Bluetooth connectivity, intelligent voice interaction, fault diagnosis, remote vehicle monitoring, and smart communication.
| SINOTRUK HOWO MAX CARGO TRUCK 8x4 | |
| Model | ZZ1367V37BKE1 |
| Body Weight | 12,370 KG |
| Permissible Load | 20,900 KG |
| Total Weight | 34,000 KG |
| Vehicle Dimensions (L x W x H) | 11,800 x 2,560 x 3,790 mm |
| Cargo Container Size | 9,700 x 2,370 x 2,150 mm |
| Axle Distance | 1,950/5,120/1,380mm |
| Number of Axles | 5 |
| Wheel Formula | 10 x 4 |
| Fuel Type | Diesel |
| ENGINE | |
| Engine Brand | MC11.40-50 (MAN GERMANY) |
| Engine Type | 4-stroke, 6-cylinder in-line, Turbo |
| Volume | 10,518 cm3 |
| Maximum Power | 297 kW (400HP) / 3200 rpm |
| Maximum Torque | 1,900 Nm |
| GEAR | |
| Gearbox Type | HW25712XSTL 12-speed (Air power assist) |
| TIRE SYSTEM | |
| Number of Tires | 02/02/02/04/04 |
| Front / Rear Tires | 12.00 - R22.5 / Dual 12.00 - R22.5 |
| STEERING | |
| Steering System | ZF8098 (GERMANY) - Hydraulic power steering |
| Transmission Ratio | 3.7 (Fast bridge, high speed, oil consumption 25-27 L/100km) |

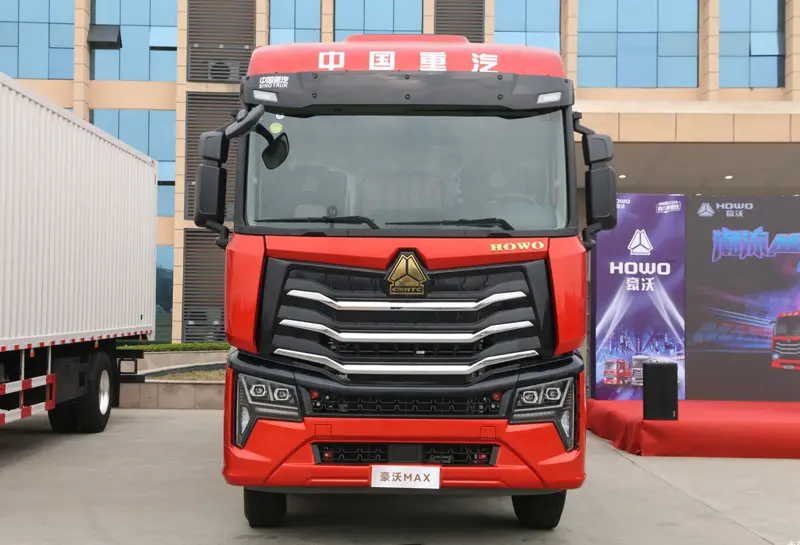

The front fascia of the Sinotruk Howo MAX cargo truck seamlessly integrates traditional Chinese elements with contemporary design trends. The bow grille with 3 chrome-plated zinc strips and Great Wall-inspired lower grille symbolize stability and longevity.

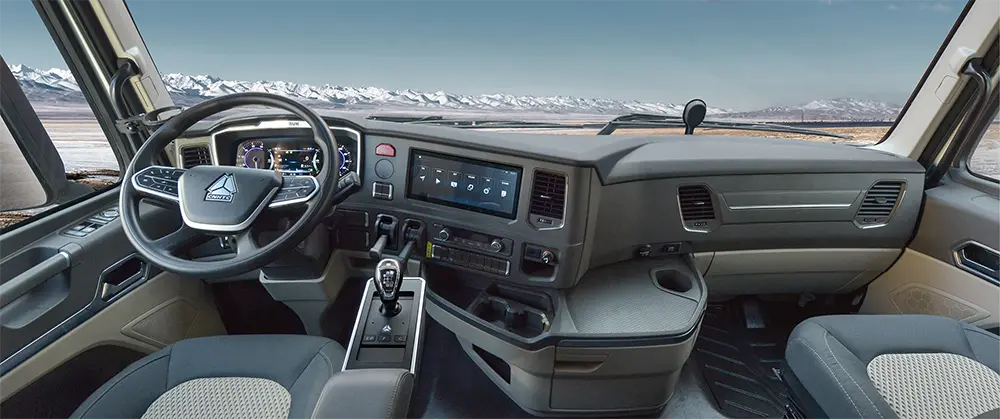

Wraparound dashboard and workstation are ergonomically designed. Eco-friendly materials with fine texture. 12.3-inch floating central control screen integrates WiFi, Bluetooth, intelligent voice interaction, fault diagnosis, and remote vehicle monitoring.
Door panel equipped with central locking, one-touch window operation, and power-adjustable mirrors. Four practical buttons for cab lifting, engine start/stop, and hazard light control are thoughtfully placed at the bottom of the door.
Standard air suspension seat comes with ventilation, one-touch adjustment, tilt adjustment, and lumbar support. Optional seat heating and massage functions available for higher-end models.
Flat-floor design with interior height up to 1,940mm provides ample standing and movement space. Impressive 623L storage capacity for long-distance journeys.
