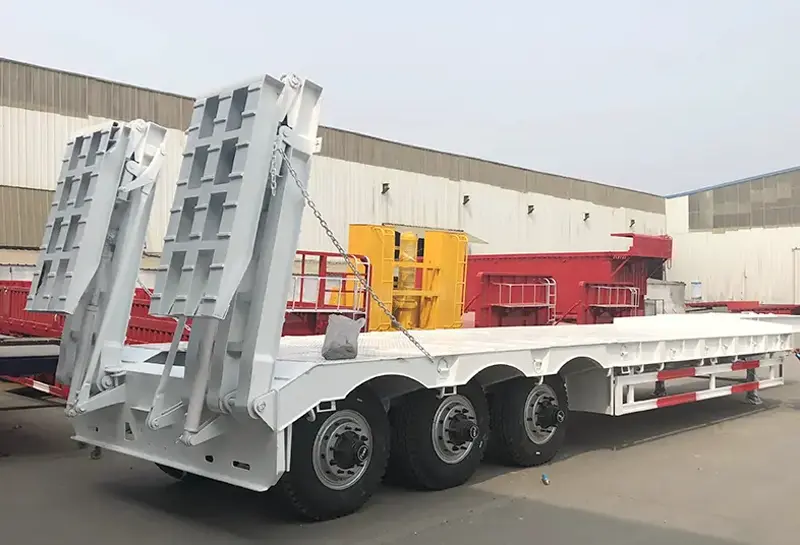

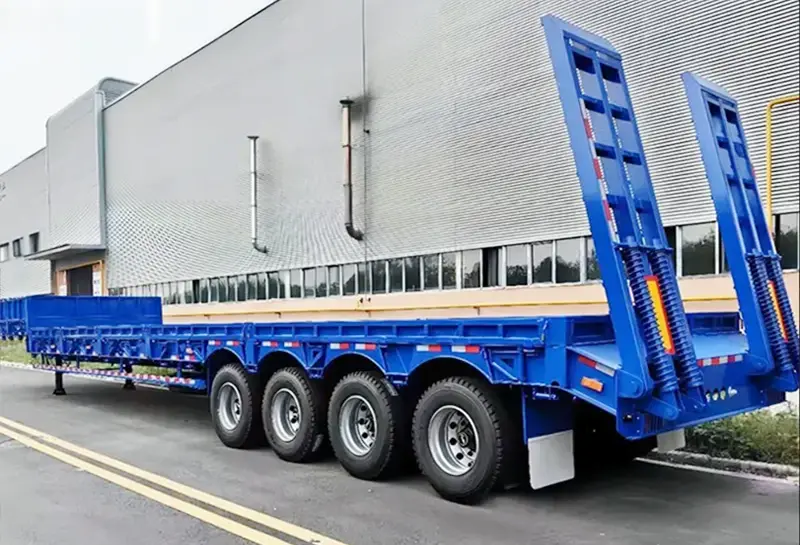

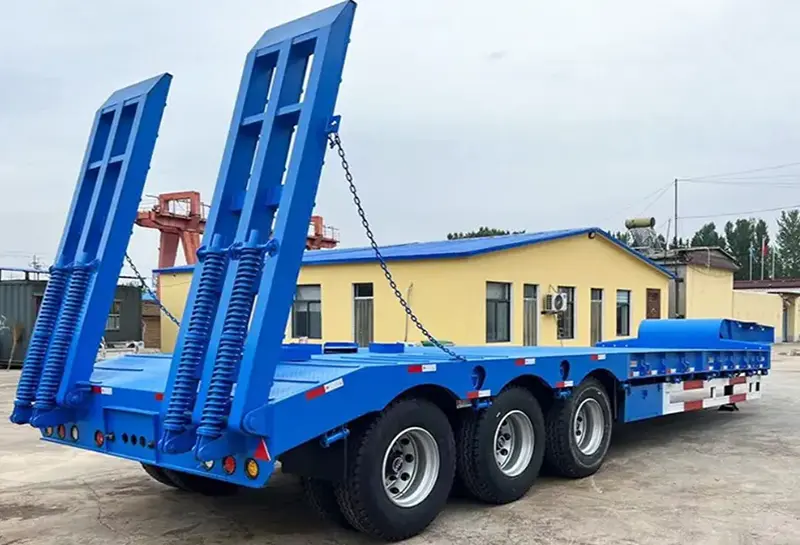

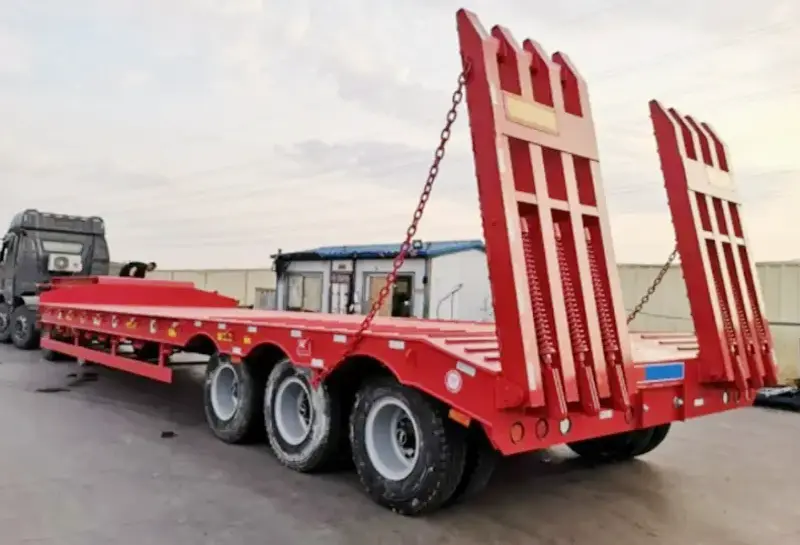

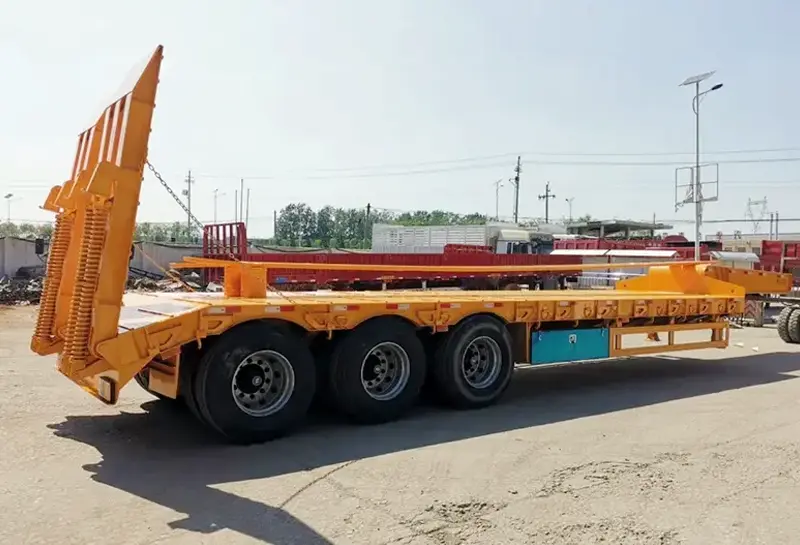

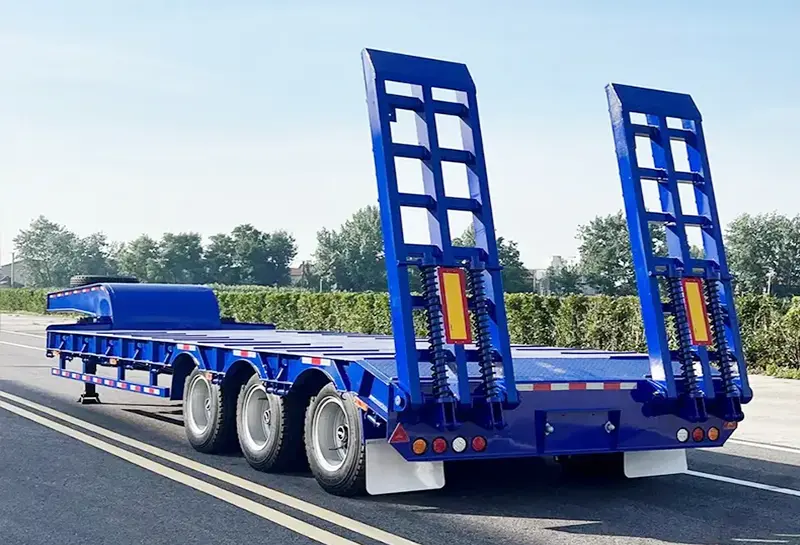

Sinotruk Howo Low Bed Semi Trailer with ladder is generally used for heavy construction in the industries of electric power construction, mining, metallurgy, chemical industry, hydroelectric and thermal power generation equipment, power station construction, heavy machinery manufacturing, oil fields, bridges, loading and unloading operations, and railroad construction. It is also ideal for long-distance road transportation of non-movable limited goods and heavy equipment.
Sinotruk Howo Low Bed Semi Trailer is made of Q345B high-strength steel plate, which is characterized by light weight and strong bump resistance. The main beam has a height of 500mm with upper plate of 14mm, down plate of 16mm, and middle plate of 8mm, ensuring exceptional structural integrity under heavy loads. All the parts are made of domestic famous brands, including FUWA 13-ton axle, Jost 28-ton linkage legs, and double-cavity brake cylinders.
The low bed semi trailer features 4/8/10 lightweight leaf springs with strong shock absorption for stable operation on rough terrain. Standard 12R tires with optional ABS enhance braking safety. 4/6/8/12 sets of container locks can be installed inside the vehicle for transporting refrigerated containers, dry containers, 40-foot shipping containers and 20-foot shipping containers, making it a versatile choice for multiple cargo types.
Built with Q345B high-strength steel for light weight and strong bump resistance. Main beam height of 500mm with reinforced plate configuration ensures structural integrity. Equipped with FUWA 13-ton axles and Jost 28-ton double-speed landing gear. The 3mm diamond plate platform provides excellent durability for transporting heavy machinery, construction equipment and oversized cargo. Dual-line braking system with 6 double air chambers ensures safe stopping under full load.
| SINOTRUK HOWO LOW BED SEMI TRAILER | |
|---|---|
| Overall Dimension (mm) | 12,500 x 2,500 x 1,550 |
| Curb Weight (kg) | 7,000 |
| Loading Capacity | 50,000 kg |
| Axle Brand and Number | FUWA brand, 13-ton, 3 units |
| Kingpin | 2 inch (50mm) or 3.5 inch (90mm) |
| Landing Gear | Jost brand, 28-ton, Double speed |
| Steel Spring | -10/10/10 leaf spring suspension |
| Suspension System | Common mechanical suspension |
| Main Beam Material | Height: 500mm. Upper plate: 14mm, Down plate: 16mm, Middle plate: 8mm |
| Tyre and Quantity | 12R22.5, 12 units |
| Platform Plate | 3mm Diamond Plate |
| Braking System | Dual line braking system |
| Braking Chamber | 6 double air chambers |
| Electrical System | 24V, 7-pin socket, one set 6-coin standard cable |
| Light | Tail lamp with turn signal, braking lamp & reflector |
| Tool Box | 1 set |
| Spare Tire Carrier | 2 sets |
| Container Locks | 4/6/8/12 sets (optional, for 20ft & 40ft containers) |
| Painting | Optional |

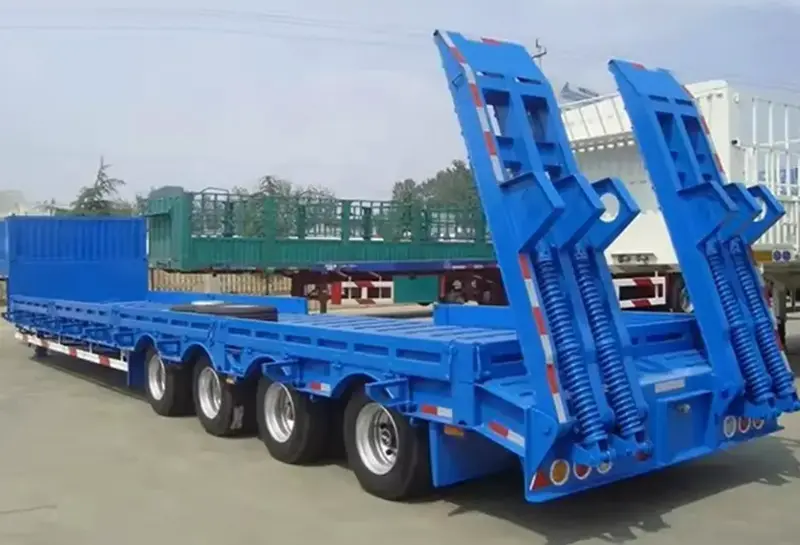

50,000 kg maximum loading capacity with Q345B high-strength steel main beam (500mm height). Reinforced upper plate (14mm), down plate (16mm) and middle plate (8mm) ensure exceptional structural integrity under heavy and oversized loads.

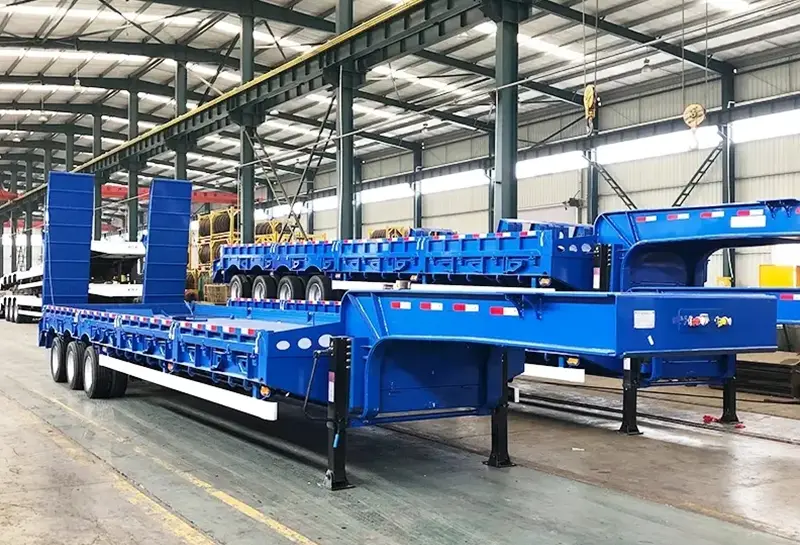

All major parts are sourced from domestic famous brands: FUWA 13-ton axle, Jost 28-ton double-speed landing gear, and double-cavity brake cylinders. These proven components ensure reliability and reduce maintenance costs over the trailer's service life.
4/6/8/12 sets of container locks can be installed for transporting refrigerated containers, dry containers, 40-foot shipping containers and 20-foot shipping containers. Flexible configuration adapts to a wide range of cargo types and shipping requirements.
Dual line braking system with 6 double air chambers provides powerful and consistent braking under full load. Optional ABS anti-lock system enhances emergency braking safety on wet or uneven road surfaces. 24V electrical system with 7-pin socket ensures reliable trailer lighting.
3mm diamond plate platform provides exceptional durability and anti-slip surface for heavy cargo. The low bed design with ladder facilitates easy loading and unloading of construction machinery, mining equipment and oversized cargo from various entry points.
