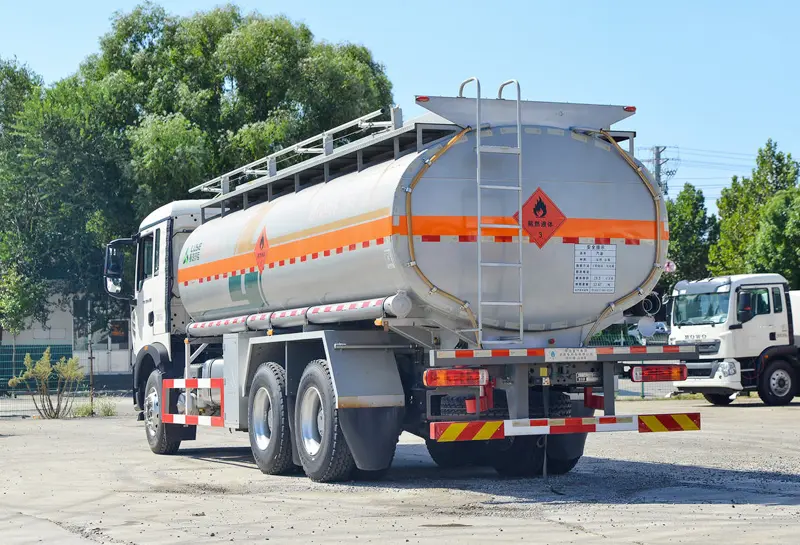

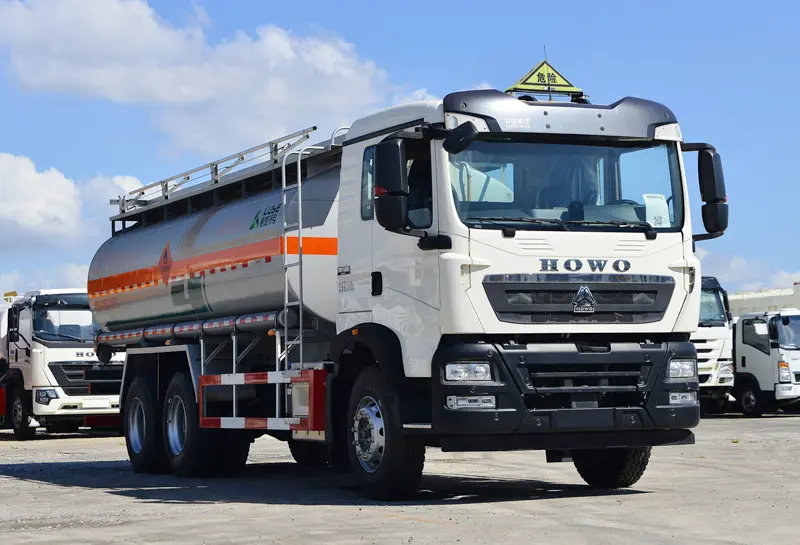

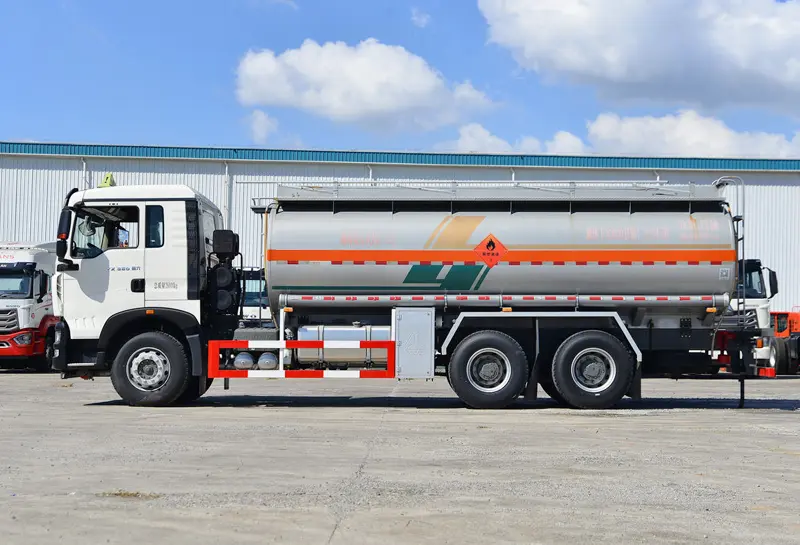

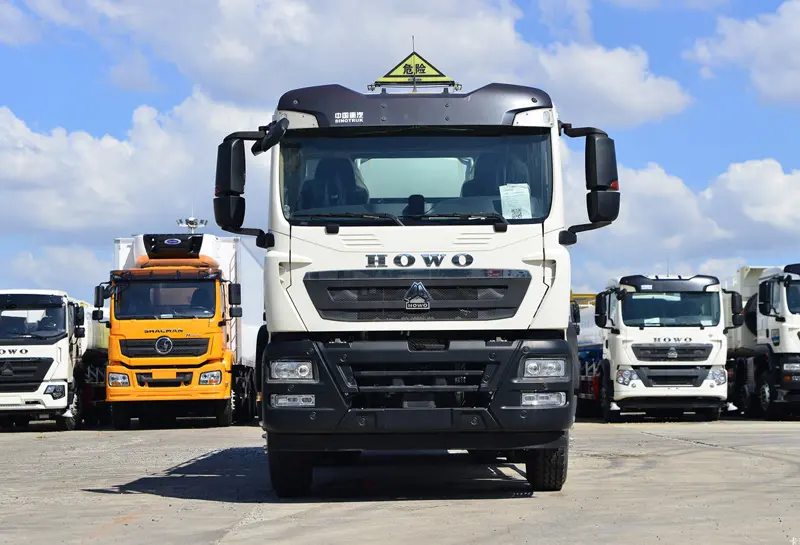

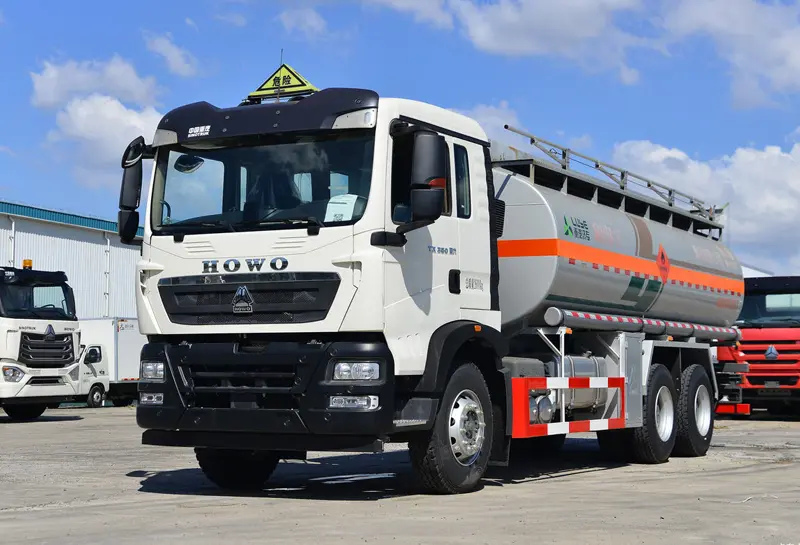

With its professional design and efficient performance, Sinotruk Howo Fuel Tanker from China TX 350 6x4 oil truck excels in the field of oil transportation. Featuring a 6x4 three-axle rear double axle drive configuration, these fuel tankers provide excellent traction and road adaptability, making them especially suitable for demanding petrochemical and industrial applications.
Petrochemical Transportation: Suitable for long-distance transportation of gasoline, diesel and liquid chemical raw materials, adapting to high temperature and high pressure environments with full compliance to dangerous goods transportation standards.
Industrial Liquid Distribution: Such as lubricating oil, asphalt and other industrial liquids. The corrosion-resistant aluminum alloy tank design ensures the purity of the medium and minimizes contamination risk.
Fuel Supply in Remote Areas: The 6x4 drive and high ground clearance design can cope with rugged road conditions such as mountainous areas and mining sites, ensuring reliable fuel supply even in the most challenging environments.
Dangerous Goods Transportation: Conforms to international dangerous goods transportation standards, equipped with multiple safety protection systems to ensure transportation safety at all times.
Equipped with a 350HP diesel engine (model MC11H.49-61), with a maximum power of 257kW and peak torque of 1,400 N-m. The aluminum alloy tank design is lightweight and corrosion-resistant, reducing the risk of loss and contamination in oil transportation. Standard volume is 20,000 liters with optional fuel dispenser, flow meter and reel pipe gun. The intelligent management system enables real-time tracking of oil temperature, pressure and leaks.
| SINOTRUK HOWO FUEL TANKER FROM CHINA | |
|---|---|
| Production Year | 2025, brand new truck. |
| Driving Type | LHD (RHD is optional) |
| Cabin | TX-F cab, with one sleeper, two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine. Model: MC11H.49-61, 350HP. Maximum power: 257kW. Peak torque: 1,400 N-m. 6-cylinder in-line with water cooling, turbo-charging and intercooling. Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1 x 9,500 KGS. Steering with double T-cross section beam |
| Rear Axle | MCX16ZG / MCP16ZG, 2 x 16,000 KGS. Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.42 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, reinforced subframe with all cold riveted cross members. Front suspension: 10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer. Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer. |
| Brake | Service brake: dual circuit compressed air brake. Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels. Auxiliary brake: engine exhaust brake. ABS anti-locking system. |
| Electrics | Operating voltage: 24 V, negative grounded. Starter: 24 V, 5.4 Kw. Alternator: 3-phase, 28 V, 1500 W. Batteries: 2 x 12 V, 165 Ah. Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. |
| Tyres | 12.00R20, Radial tires with one spare tire. Optional: 315/80R22.5 Tubeless Tires |
| Fuel Tank | 400 L |
| Cargo Body (Tank) | 20,000 liters (standard). Optional: 25,000 liters. Optional equipment: fuel dispenser, flow meter and reel pipe gun. Aluminum alloy tank, lightweight and corrosion-resistant. |
| Emission Standard | National VI |
| Color | Optional |
Mechanical shock-absorbing seats, multi-function dashboard, and reversing radar enhance driving comfort and safety. Intelligence: center control screen, navigation system and reverse camera for improved ease of operation. TX-F cab with one sleeper and air conditioner for long-distance driving comfort.
Equipped with a 350HP diesel engine (model MC11H.49-61), with a maximum power of 257kW and peak torque of 1,400 N-m, providing abundant power and quick response. The 6x4 drive format with 12.00R20 radial tires provides excellent traction and adaptability to complex road conditions.
HW19710 10-speed manual transmission and 4.42 speed ratio rear axle optimize power transmission and reduce fuel consumption. Meets National VI emission standards, significantly reducing environmental pollution and meeting the most stringent global environmental requirements.

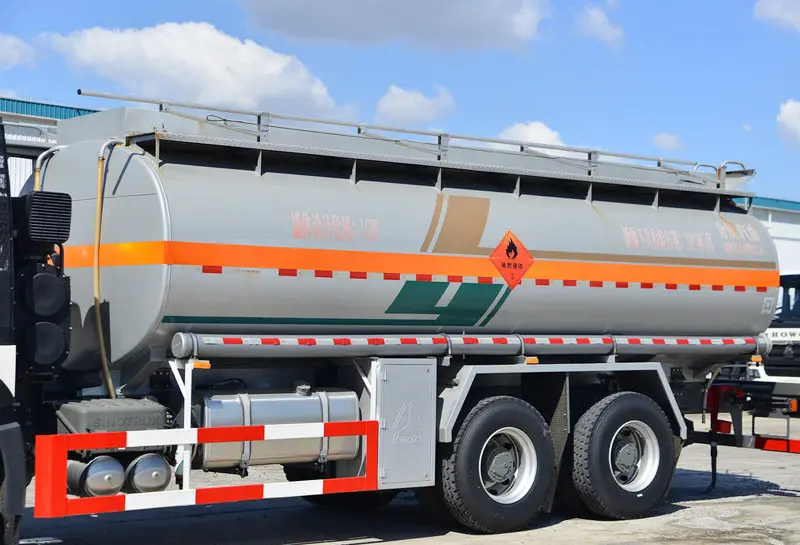

Aluminum alloy tank design is lightweight and corrosion-resistant, reducing the risk of loss and contamination in oil transportation. Standard volume is 20,000 liters (some models support 25,000 liters customization), meeting the demand for large-capacity transportation.
Standard equipped with ABS anti-lock system, air brake and crash bar to enhance emergency braking safety. Optional GPS positioning and remote monitoring system, enabling real-time tracking of oil temperature, pressure and leaks for complete operational transparency.
