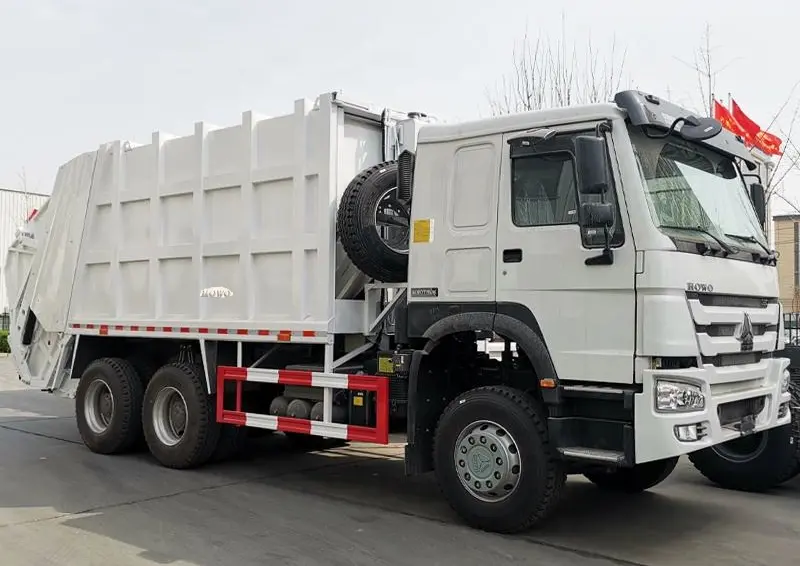

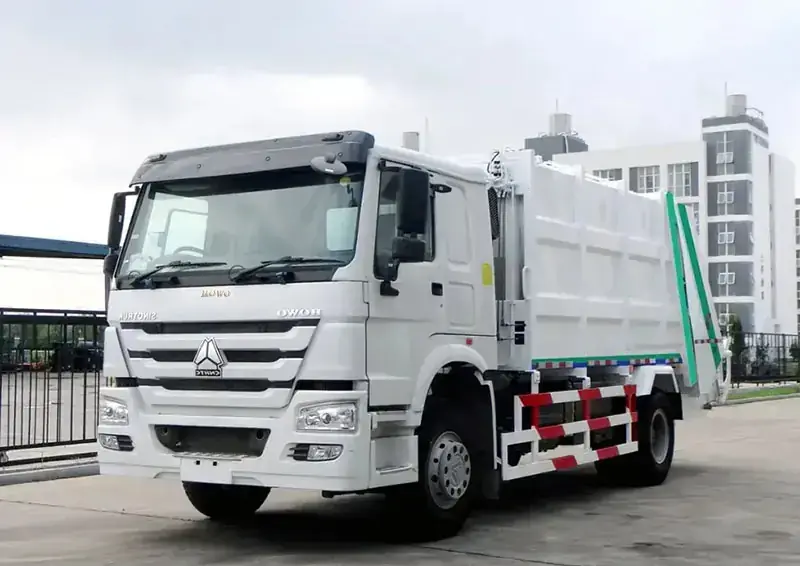

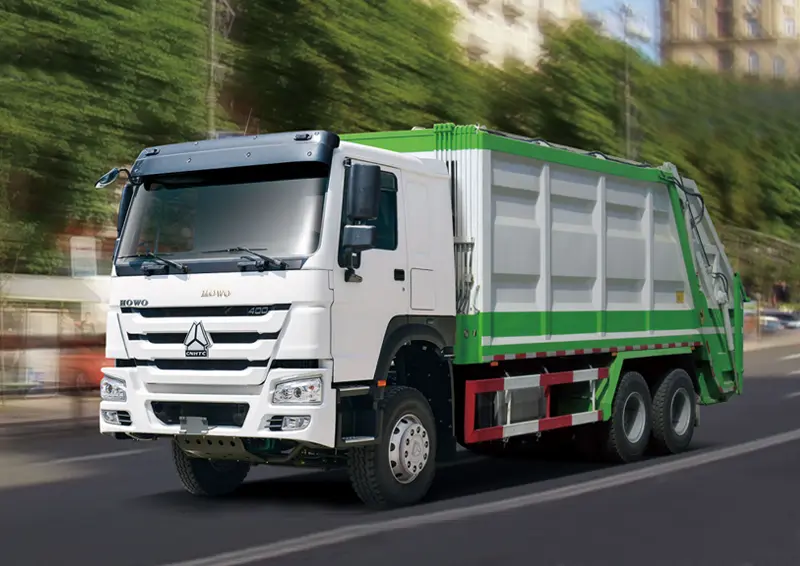

The Sinotruk Howo 7 garbage truck is an efficient and environmentally friendly vehicle designed for municipal waste collection and transportation. With advanced technology and design concepts, this model has strong power and superior maneuverability, and is able to drive smoothly on a variety of urban roads and in complex environments.
The Sinotruk Howo 7 garbage truck is equipped with an efficient compression system that compresses the waste during loading, maximizing the amount of waste that can be loaded. The body's design is optimized for good sealing and durability, ensuring that there is no leakage during transportation and keeping the urban environment tidy.
Whether on city streets or in rural communities, the Sinotruk Howo 7 garbage truck is ideal for all types of waste disposal. Its reliable performance and economical operating costs make it the first choice for many sanitation companies, helping to clean and beautify the urban environment.
Safety and user-friendly design is one of the highlights of Sinotruk Howo 7 garbage truck. The vehicle is equipped with multiple safety protection systems to ensure the safety of operators. At the same time, the easy-to-use operating system facilitates the driver's waste collection and transportation operations.
Operation is controlled via boxes installed in the cab and at the rear of the vehicle (with wireless remote control). Operation mode: manual + electric dual control, CAN electronic control system. Emergency stop switches are installed on both sides for added safety.

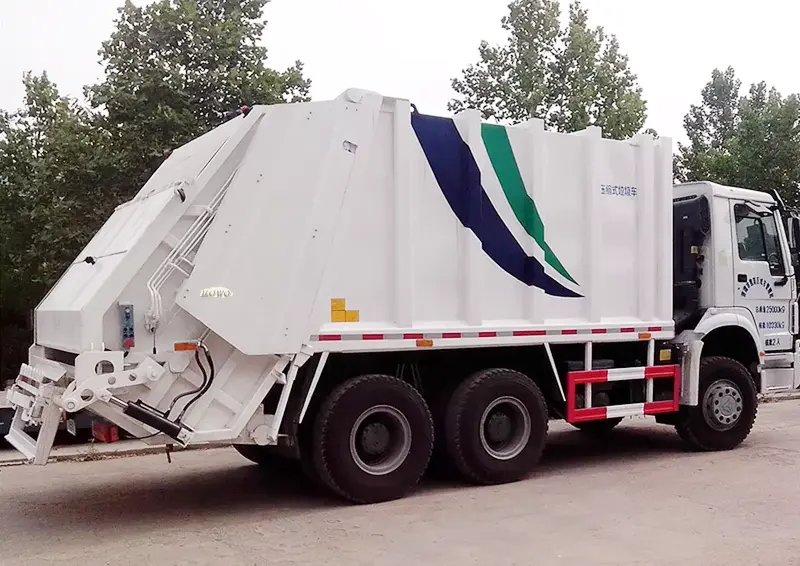

Compartment: Arc-shaped compartment, rear end adopts fully sealed hopper type. Material made of Q345 high-strength manganese steel with 5mm thick sides and 5mm thick bottom. New type crushable scraper plate with bidirectional peristaltic compression.
Hydraulic System: Mid-mounted and rear-mounted dual sewage tanks. Changyuan dual oil pump with brand-name oil cylinder. Bidirectional filtering hydraulic oil storage tank. Yangzhou Zhongmei multi-way valve with back pressure valve and safety valve.
Capacity: 16-23 cubic meters (Optional). Large capacity dumpster meets the needs of daily garbage disposal, reducing frequency of emptying and improving work efficiency.
| SINOTRUK HOWO 7 GARBAGE TRUCK | |
| Production Year | New truck. |
| CABIN | |
| Cab Type | HW76 cab, with one Sleeper and Air Conditioner (A/C) |
| ENGINE | |
| Engine Model | WD615.47, 371HP / WP10.380E22, 380HP / WP12S.400E201, 400HP |
| Configuration | 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Displacement | 9.726 L / 11.596 L |
| TRANSMISSION | |
| Transmission | HW19710, 10 Fronts & 2 Reverses |
| Ratio | 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF8118, hydraulic steering with power assistance |
| AXLES | |
| Front Axle | VGD95, 9,500 KGS |
| Rear Axle | MCX16ZG / MCP16ZG, 2x16,000 KGS |
| TIRES | |
| Tire Specification | 12.00R20, radial tires with one spare tire or 315/80R22.5 Tubeless Tires |
| CARGO BODY | |
| Cargo Body | 16-23 cubic meters (Optional) |
| Compartment Material | Q345 high-strength manganese steel, 5mm thick sides and bottom |
| Fuel Tank | 400 L |

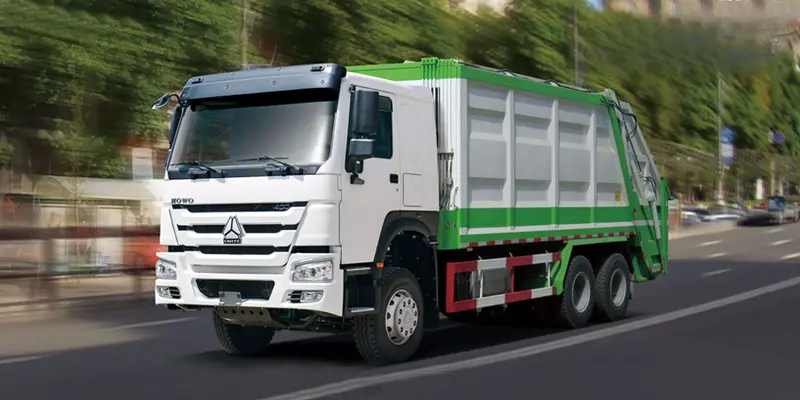

HOWO-7 excels in challenging environments like construction sites and mines, thanks to its strength, ruggedness, and durability. In harsh working environments, HOWO-7 is fully equipped to face the toughest working conditions.

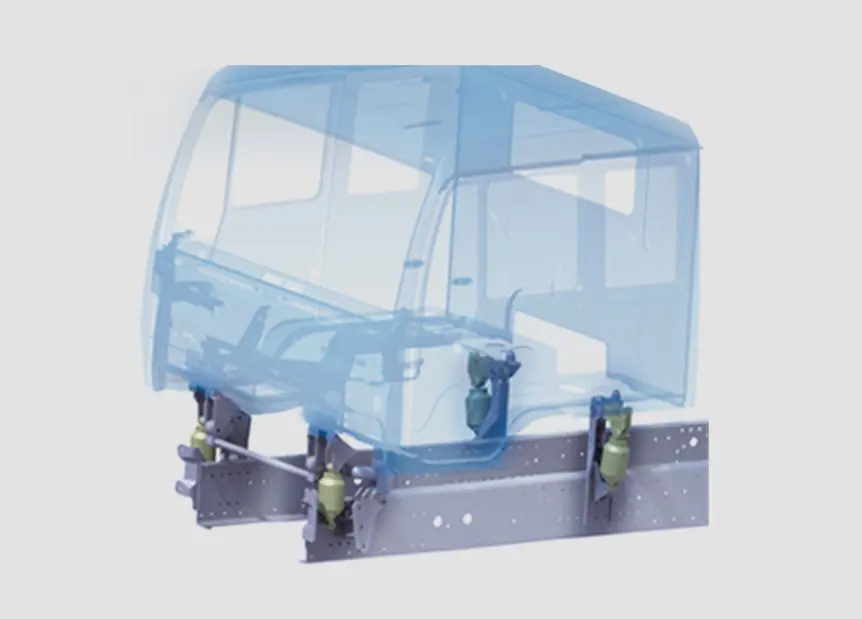

Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety. Jointly developed by SINOTRUK and a famous Italian design company.

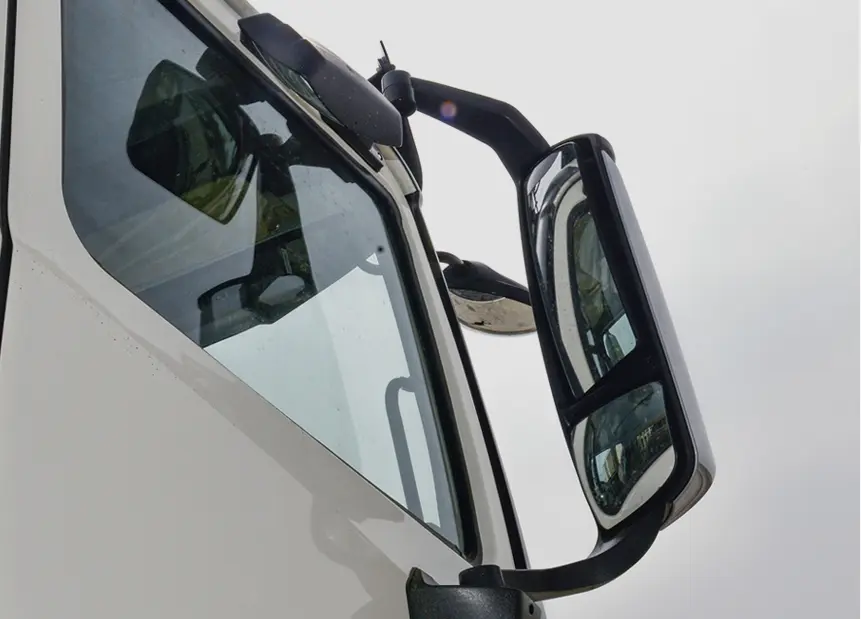

The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.

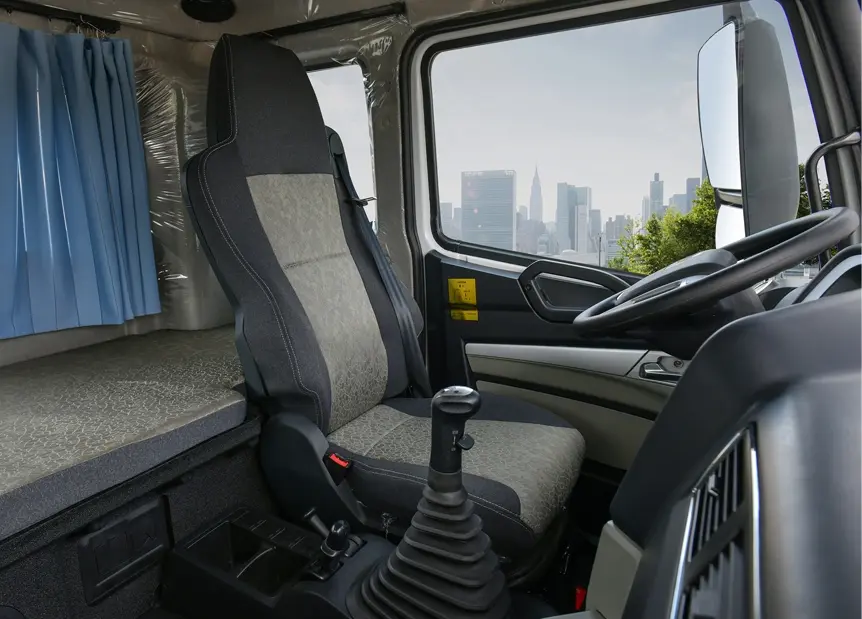

The air cushion helps the driver quickly find a suitable seating position. The ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
Provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.
