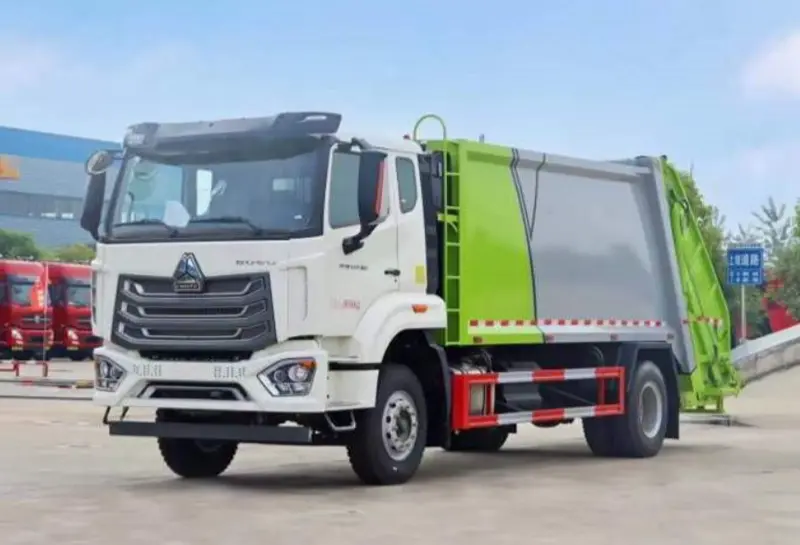

The Sinotruk Howo 4x2 garbage truck compactor (Model: QDZ5161ZYSZH) is a reliable and efficient waste management solution, built on the robust ZZ1167M4611W chassis. The 4x2 drive-type truck features a spacious long cabin with one sleeper, designed for comfort during long shifts.
Powered by a SINOTRUK WD615.62 engine, producing 266HP and meeting Euro II emissions standards, it delivers powerful and eco-friendly performance. The HW15710 gearbox, with 10 forward speeds and 2 reverse, ensures smooth handling, while the ZF8098 steering provides precise control.
Equipped with a durable HF7 front axle with drum brakes and a ST16 rear axle (ratio: 5.73), this compactor is designed for heavy loads. The 12.00R20 tires offer excellent traction on various surfaces, enhancing operational efficiency.
Safety features include a high steel bumper, an expansion tank located behind the cabin, after cooler protection, and double safety belts for added security. Equipped with HW50 PTO for optimal operation.
With a body volume of 16 m³, the SINOTRUK HOWO Garbage Compactor is perfect for municipal waste collection, offering both performance and durability for demanding environments.
Loading Volume: 12-14 cubic meters. Box material: Wuhan Iron and Steel high-quality manganese steel. Used for loading domestic waste. Composed of sealed garbage bin, loader, push shovel, hydraulic transmission system, and electrical control system.
Technology: Adopts electro-hydraulic integration technology with mechanical-electrical-hydraulic combined automatic control system. Realizes garbage dumping, crushing or flattening, and forced loading. All sewage during compression enters the sewage tank, solving the problem of secondary pollution during garbage transportation.
Optional Equipment: Standard iron garbage barrels (300L), plastic garbage bins (240L or 660L). Also available with triangular hoppers, large ground hoppers, swing-arm garbage hoppers, and pneumatic sealed cover.
| SINOTRUK HOWO 4X2 GARBAGE TRUCK | |
| Production Year | New truck. |
| Model | QDZ5161ZYSZH |
| Chassis Model | ZZ1167M4611W |
| CABIN | |
| Cab Type | H77L cab, with one Sleeper and Air Conditioner (A/C) |
| ENGINE | |
| Engine Model | WP10.300E22, 300HP |
| Configuration | 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Displacement | 9.726 L |
| TRANSMISSION | |
| Transmission | HW19710, 10 Fronts & 2 Reverses |
| Ratio | 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF8118, hydraulic steering with power assistance |
| AXLES | |
| Front Axle | HF7, drum brakes, 9,500 KGS |
| Rear Axle | ST16, ratio 5.73, 16,000 KGS |
| TIRES | |
| Tire Specification | 12.00R20, radial tires with one spare tire or 315/80R22.5 Tubeless Tires |
| CARGO BODY | |
| Cargo Body | 12-14 Cubic meters, sealed garbage bin compactor |
| Fuel Tank | 400 L |

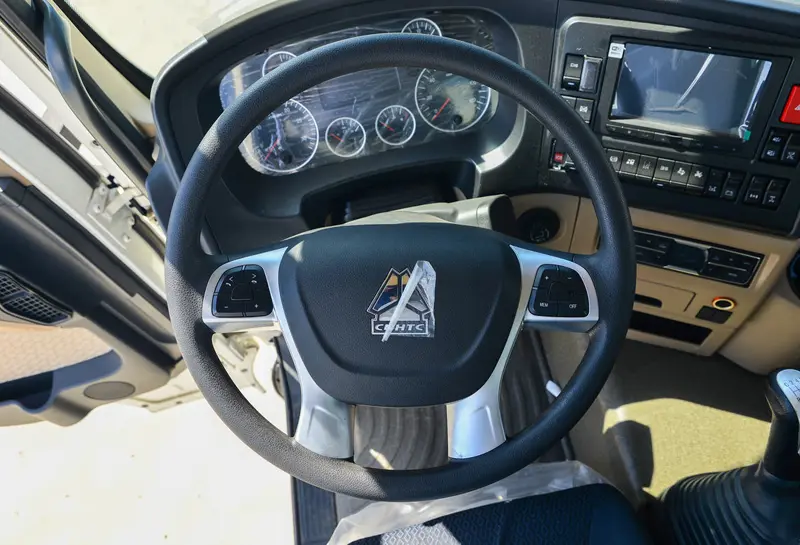

Mechanical shock-absorbing seats, multi-function dashboard, and reversing radar enhance driving comfort and safety.
Intelligence: center control screen, navigation system and reverse camera for improved ease of operation.
Equipped with a 350hp diesel engine (model MC11H.49-61), with a maximum power of 257kW and peak torque of 1,400N-m, it has abundant power and quick response.
The 6X4 drive format (three-axle rear double axle drive) with 12.00R20 radial tires provides excellent traction and adaptability to complex road conditions.
HW19710 10-speed manual transmission and 4.42 speed ratio rear axle optimize power transmission and reduce fuel consumption.
Meet National VI emission standards and reduce environmental pollution.
Aluminum alloy tank design is lightweight and corrosion-resistant, reducing the risk of loss and contamination in oil transportation.
Standard volume is 20,000 liters (some models support customized capacity), meeting the demand for large-capacity transportation.
Standard equipped with ABS anti-lock system, air brake and crash bar to enhance emergency braking safety3
Optional GPS positioning and remote monitoring system, real-time tracking of oil temperature, pressure and leaks.
