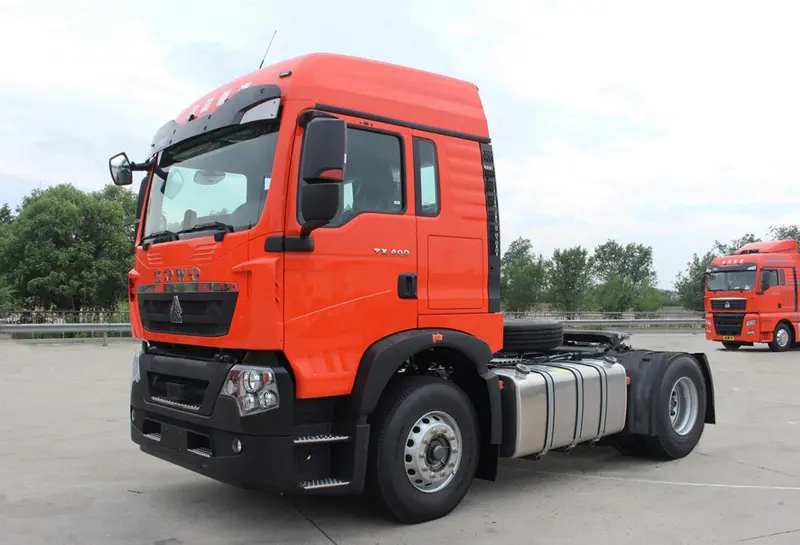

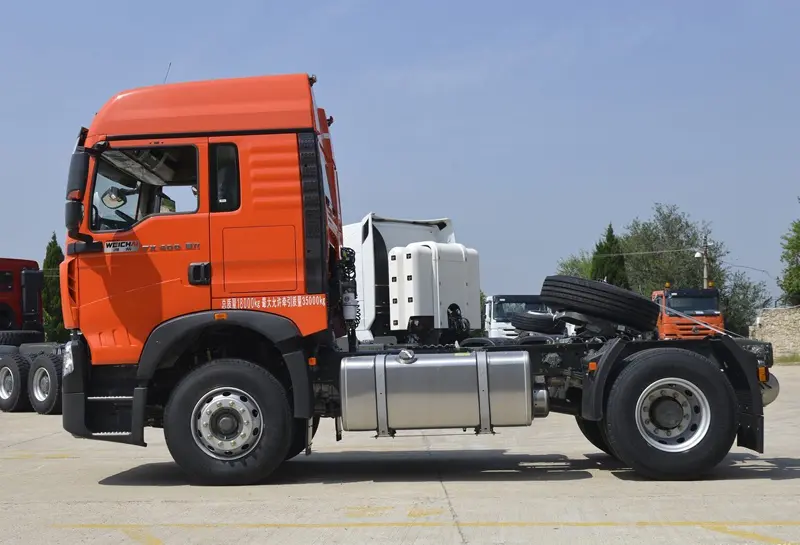

Sinotruk brought us another masterpiece, Sinotruk Howo 420 4x2 Tractor Truck HOWO TX Series truck. The Sinotruk Howo 420 4x2 Tractor Truck is among those who are expected to be launched this year. As an update of MAN TGA, it is specifically developed for the standard load operation.
According to Sinotruk, they offer Sinotruk Howo 420 4x2 Tractor Truck three engine options including optimized MC11.44-50, MC11.46-50 and MC13.48-50 which can reduce fuel consumption by as much as 2-3L, depending on operating conditions.
In terms of interior, Sinotruk will also provide equipment including airbag seats with armrests, electric cab lift, four-point airbag suspension, 220V-1000W inverter, multifunction steering wheel, sleeper control switch USB interface, vehicle refrigerator, and four-way camera, as well as LDWS + FCWS (with radar), electric heating, electric sunroof.

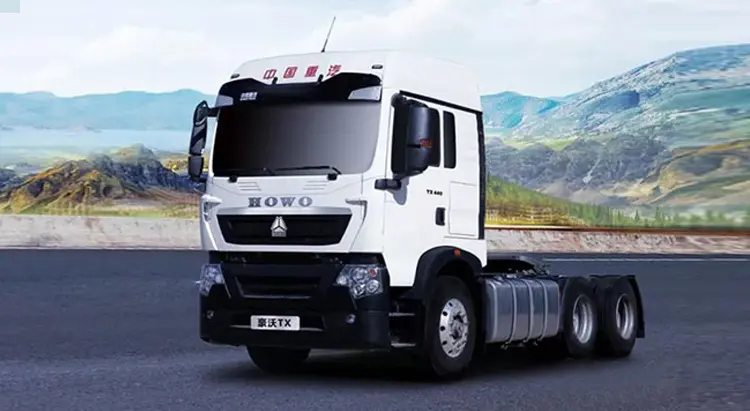

Sinotruk will also roll out its natural gas-powered Howo TX with National VI Emission Standards, which are to be equipped with MT13 engines that offer a low natural gas consumption of only 28-32 Kilogram. With a MAN TGS cab and the newly developed bumper in 2020, it looks unique in design and spectacular in grandeur.
The Sinotruk Howo 420 4x2 Tractor Truck is equipped with Weichai WP10H400E62 engine, delivering maximum output power of 294kW (400HP) and maximum torque of 1900N-m. The 12-speed transmission provides smooth and efficient power delivery for long-haul transport operations.
| SINOTRUK HOWO 420 4x2 TRACTOR TRUCK SPECIFICATION | |
|---|---|
| Truck | Sinotruk Howo 420 4x2 Tractor Truck |
| Model | ZZ4187N361GF1 |
| Curb Weight (kg) | 6,500 kg |
| Gross Weight (kg) | 18,000 kg |
| Max. Drawing Capacity (kg) | 35,300 kg |
| Engine Model | Weichai WP10H400E62 |
| Engine Displacement (L) | 9.5 L |
| Engine Max Output Power (kW) | 294 kW |
| Horsepower (Ps) | 400 HP |
| Engine Max Torque (N.m) | 1900 N-m |
| Max. Torque/Rotation Speed | 1200-1300 rpm |
| Fuel Type | Diesel |
| Emission Level | Euro 6 |
| Transmission Model | SINOTRUK HW19712CL |
| Gear Shift | 12 Speed Transmission |
| Driving Type | 4x2 |
| Wheelbase (mm) | 3600 mm |
| Overall Dimensions (mm) | 5,925 x 2,496 x 2,970 mm |
| Wheel Track Front/Rear (mm) | Front: 2015mm / Rear: 1830mm |
| Rear Axle | MCY13JGS Self-aligning arm single rear axle (drum) |
| Tire | 315/80R22.5 18PR |
| Number of Wheels/Tires | 6 |
| Fuel Tank Capacity (L) | 400 L |
| Max Speed (km/h) | 110 km/h |
| Passenger Capacity | 3 Occupants |
| Number of Leaf Spring | 3/5 |

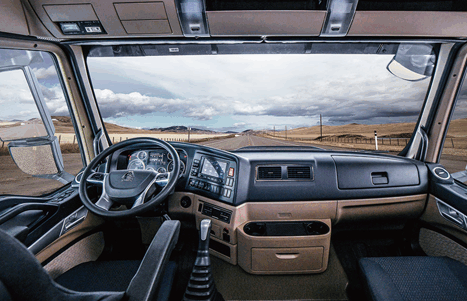

The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.
Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added.
The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level is reduced by 3dB.

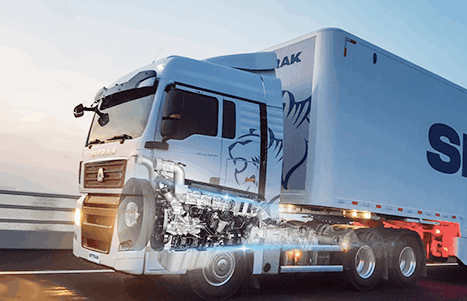

The Howo truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro II to Euro VI.
