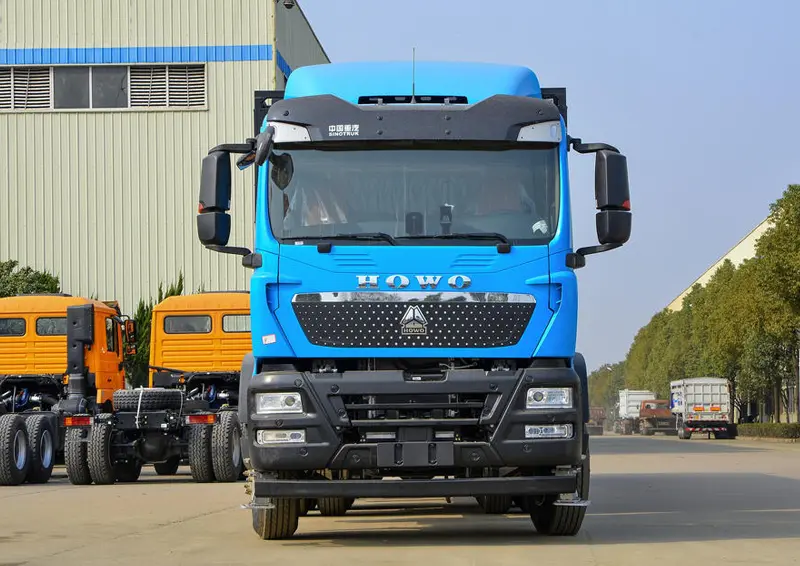

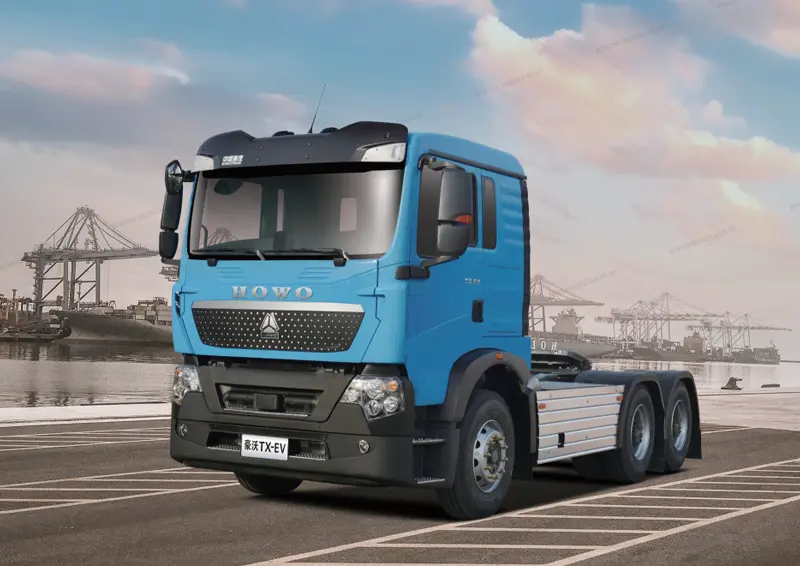

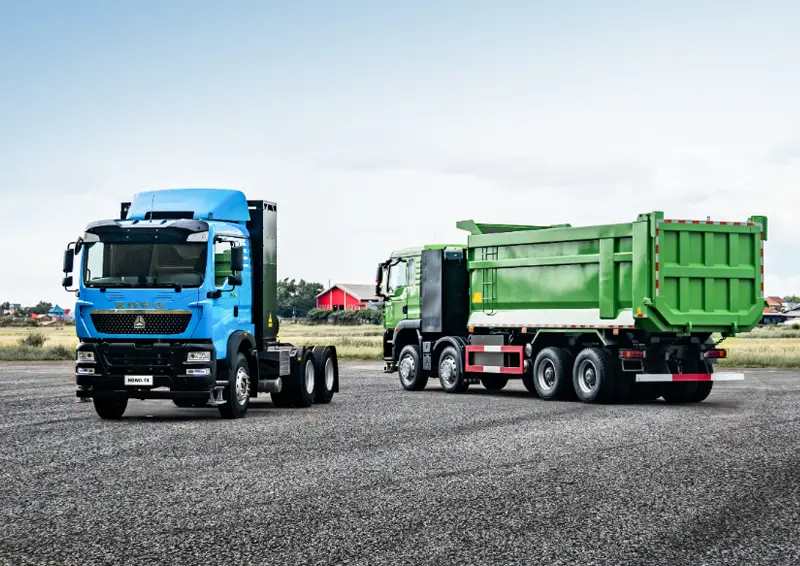

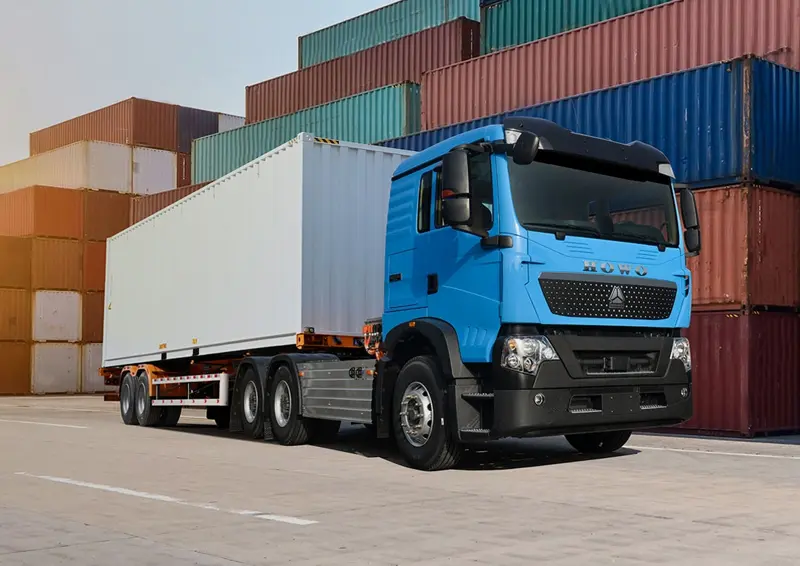

As the core product of China National Heavy Duty Truck (CNHTC)'s new energy strategy, Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle) adopts lithium iron phosphate battery system, standard 350kWh super power, supporting dual-gun parallel charging technology (1C fast charging), which can replenish 80% of power in 30 minutes, and the range exceeds 300km.
Currently, the Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle) has completed 20,000 hours of reliability testing in Ningbo Port, and the annual carbon reduction of a single vehicle is equivalent to planting 400 fir trees. With the promotion of the national "dual-carbon" policy, it is becoming the preferred solution for the electrification transformation of mainline logistics.
Intelligent energy management: Equipped with a battery pre-heating system (-30 degree C normal start) and braking energy recovery device, reducing energy consumption by 12%.

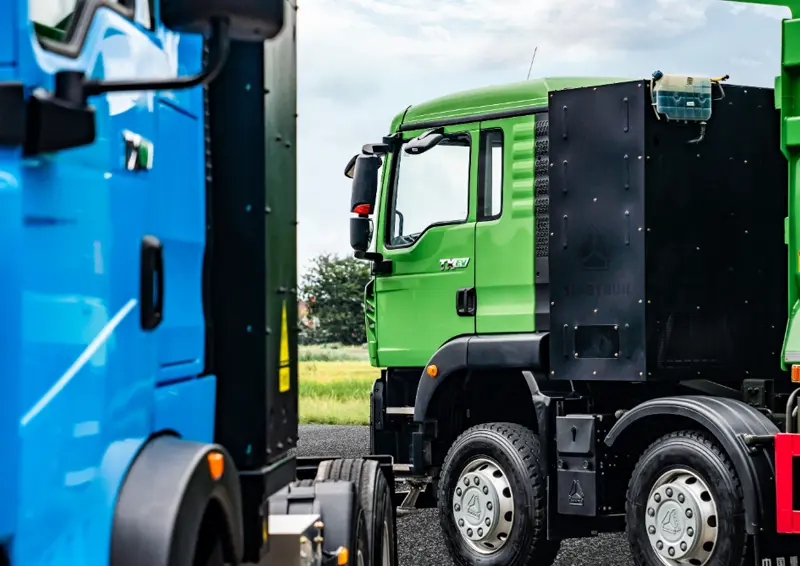

Vehicle-Electricity Separation Mode: Supports the optional battery swap version (5-minute battery change), and is compatible with standard power stations such as the State Power Investment Corporation (SIPC).
Digital twin platform: Real-time monitoring of 18 core parameters such as motor temperature and SOC through the vehicle T-Box.
| SINOTRUCK HOWO TX PURE ELECTRIC TRACTORS TRUCK SPECIFICATION | |
|---|---|
| Truck Name | Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle) |
| Model | ZZ4257V384GZ1SBEV / ZZ4257Y384GZ1BEV40B |
| Drive | 6x4 |
| Wheelbase | 3800+1400 mm |
| Peak Power | 520 kW (707 HP) |
| Max Torque | 56000 N-m |
| Motor Type | Permanent Magnet Synchronous Motor |
| Battery Type | LFP Battery (CATL) |
| Battery Capacity | 350-422 kWh |
| CLTC Range | 220-330 km |
| Charging | Dual-gun Fast Charge (600A), 30%-80% in <25 min |
| Battery Swap | Optional (5 min swap) |
| Length | 7.45-7.485 m |
| Curb Weight | 10.545-11.8 t |
| Gross Combination Weight | 37.07-38.325 t |
| Front Axle | 7t (VGD95) |
| Rear Axle | 18t (MCP16ZG) |
| Cabin | 10.1" Floating Screen + Digital Cluster |
| Tires | 12R22.5 18PR, 10 Tires |
| Top Speed | 89 km/h |

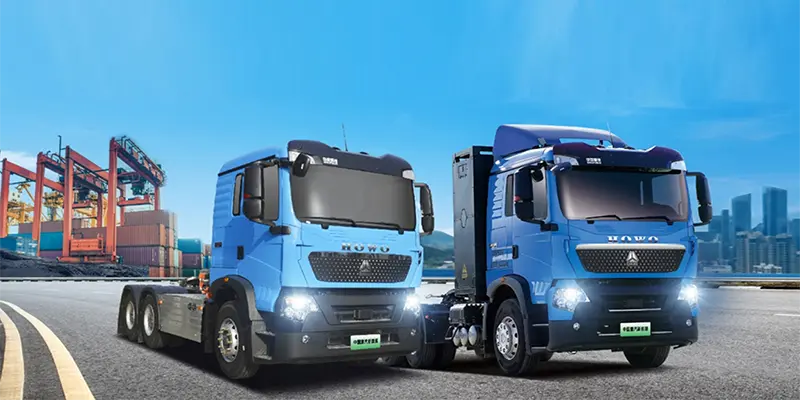

CLTC working condition range 245-430km (different battery capacity version). Supports dual mode of power exchange/charging, 600Ah dual gun fast charging. 1.3C high charging rate technology.

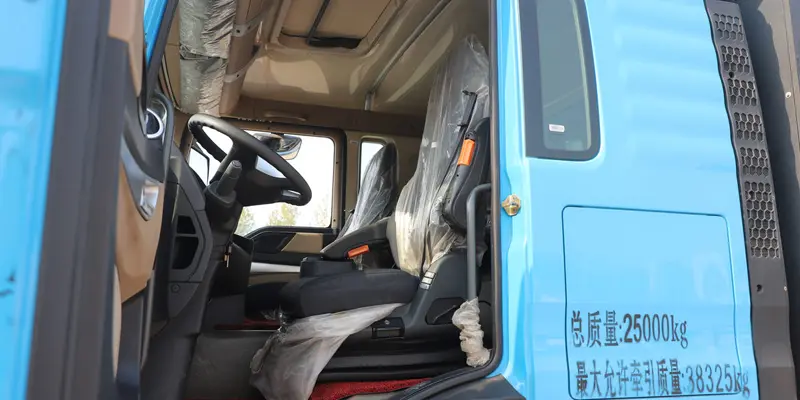

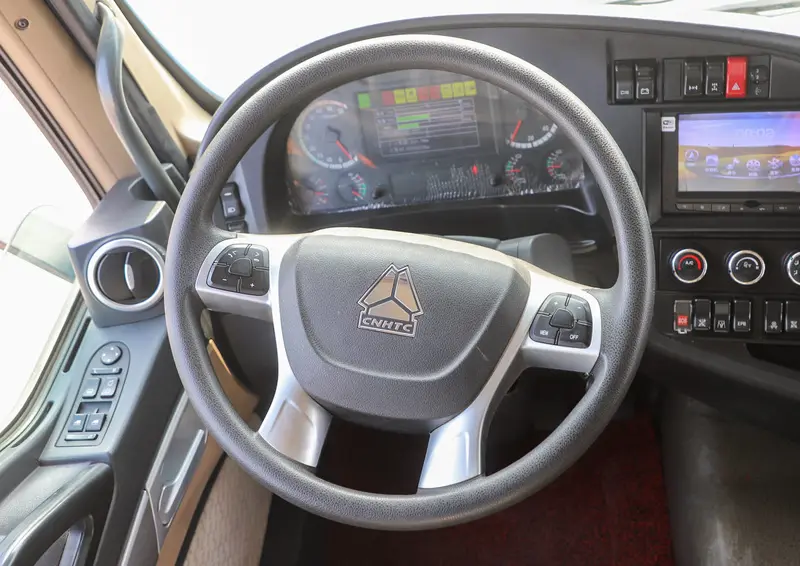

TX-F cab, 3-passenger permitted. Wrap-around instrument panel + 12-inch center screen. Airbag shock-absorbing seats + automatic air conditioning.
Standard: ABS + ASR + Body Stabilization System. Optional: Forward Collision Warning, Emergency Brake Assist. Telematics + Tire Pressure Monitor.

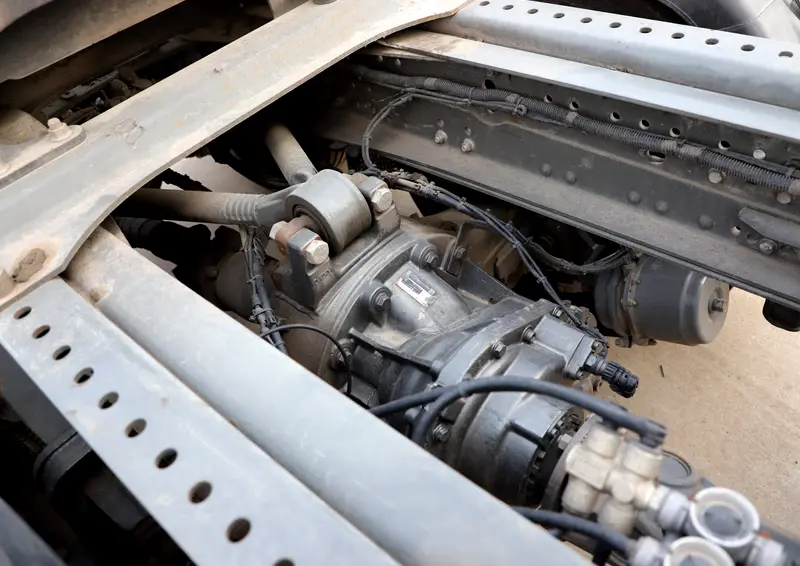

6x4 drive form, wheelbase 3800+1400mm. Front axle load 7 tons, rear axle load 18 tons. Aluminum alloy wheels + less leaf spring lightweight design.
